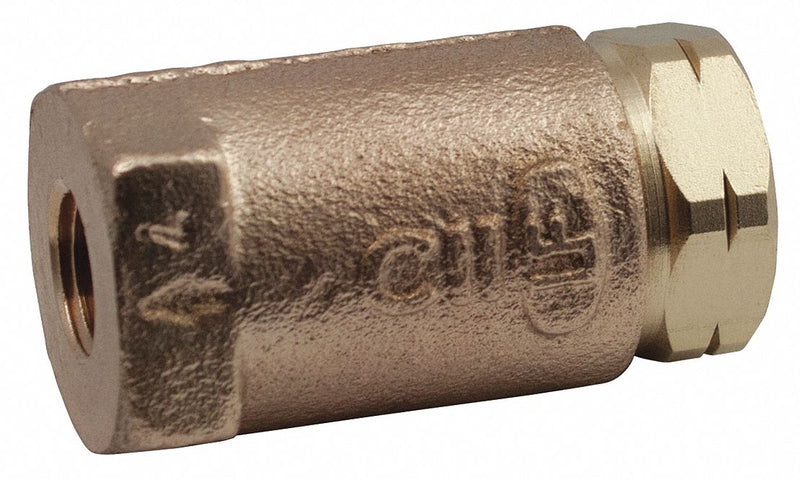

Apollo Check Valve, 2 in, Single, Inline Ball Cone, Bronze, FNPT x FNPT - 61LF10801

Apollo ValvesSKU: C1910668
MPN : 61LF10801
Weight : 6.75 lb

filler

Price:
$322.20 $519.68

Availability : Usually Ships in 25 Business Days

Providing a tight shutoff with liquid media, this APOLLO check valve has a straight-through design that assures a minimum change in velocity and protects against reverse flow. Model is certified for use in potable water applications.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Ball Cone
Body Material - ValvesBronze
Pipe or Tube Size - Check Valves2 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.5 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesEPDM
Max. Temp. - Valves180 Degrees F
Min. Temp. - Valves33 Degrees F
Max. Water Pressure - Valves400 psi
Max. Steam Pressure - Valves125 psi WSP
Seat Material - Check ValvesRPTFE
Spring Material - Check ValvesStainless Steel
Flow - Valves81 gpm
Application - ValvesGeneral Purpose
Length6 in
Width3 17/25 in
Overall Height3 17/25 in
Hex Size3 17/25 in
StandardsNSF 372, NSF61-G
