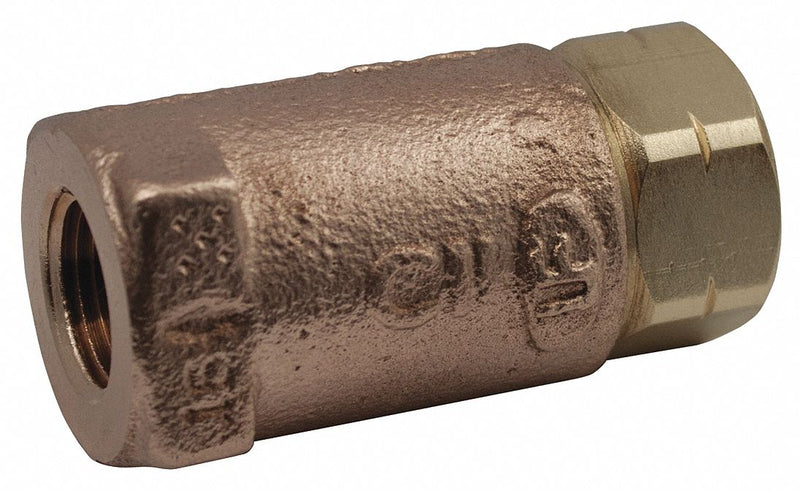

Apollo Check Valve, 3/4 in, Single, Inline Ball Cone, Bronze, FNPT x FNPT - 61LF50401

Apollo ValvesSKU: C1910671
MPN : 61LF50401
Weight : 1.0 lb


$55.97 $68.26

Availability : Usually Ships in 7-10 Business Days

Providing a tight shutoff with liquid media, this APOLLO check valve has a straight-through design that assures a minimum change in velocity and protects against reverse flow. Model is certified for use in potable water applications.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Ball Cone
Body Material - ValvesBronze
Pipe or Tube Size - Check Valves3/4 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.5 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesEPDM
Max. Temp. - Valves180 Degrees F
Min. Temp. - Valves33 Degrees F
Max. Water Pressure - Valves400 psi
Max. Steam Pressure - Valves15 psi WSP
Seat Material - Check ValvesEPDM
Spring Material - Check ValvesStainless Steel
Flow - Valves3.53 gpm
Application - ValvesGeneral Purpose
Length2 7/8 in
Width1 3/25 in
Overall Height1 3/25 in
Hex Size1 3/25 in
StandardsNSF 372, NSF61-G
