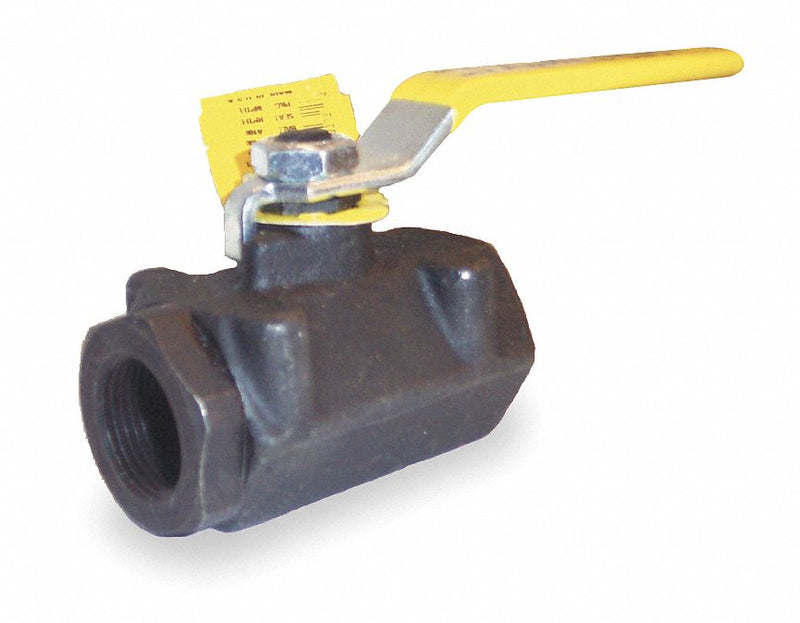

Apollo Fire Safe Ball Valve, Carbon Steel, Inline, 2-Piece, Pipe Size 3/4 in - 73A10424A
filler
Availability : Usually Ships in 15 Business Days
For use in higher-pressure applications with water, oil, gas, and low-pressure steam. API 607, 6th edition, Class 600 burn.
| Item | Fire Safe Ball Valve |
| Body Material | Carbon Steel |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 3/4 in |
| Connection Type | FNPT x FNPT |
| Port | Standard |
| Max. Pressure | 2000 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -20 Degrees to 500 Degrees F |
| Ball Material | Chrome Plated Carbon Steel |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | Carbon Steel Melonite |
| Body Seal Material | PTFE |
| Features | Forged Construction |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Carbon Steel |
| Standards | MSS-SP-110 |
| Overall Length | 6.32 in |
