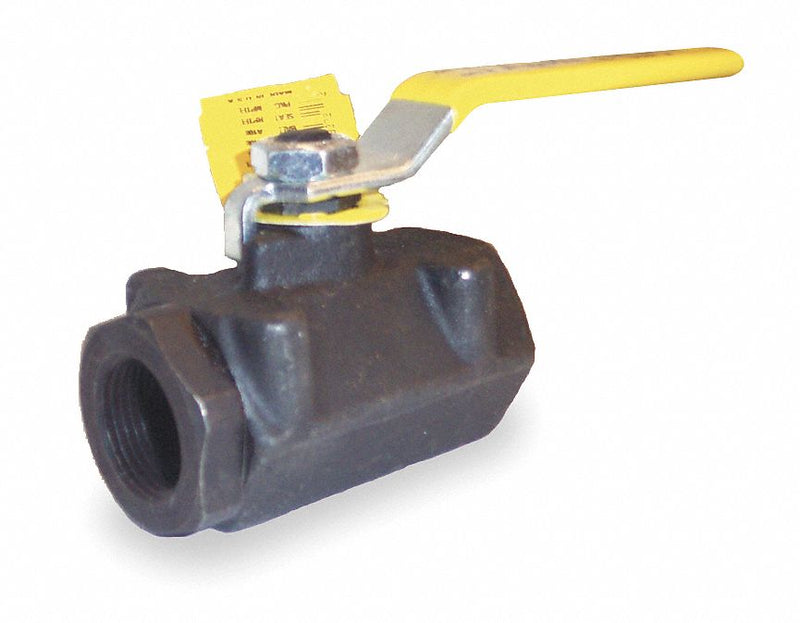

Apollo Fire Safe Ball Valve, Carbon Steel, Inline, 2-Piece, Pipe Size 3/8 in - 73A10224A

Apollo ValvesSKU: C1946758
MPN : 73A10224A
Weight : 0.75 lb
filler

Price:
$37.27 $45.45

Availability : Usually Ships in 10-15 Business Days

For use in higher-pressure applications with water, oil, gas, and low-pressure steam. API 607, 6th edition, Class 600 burn.

ItemFire Safe Ball Valve
Body MaterialCarbon Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size3/8 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure2000 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 500 Degrees F
Ball MaterialChrome Plated Carbon Steel
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel with Vinyl Grip
Stem MaterialCarbon Steel Melonite
Body Seal MaterialPTFE
FeaturesForged Construction
Ball Valve Product GroupManual
Valve Basic Body MaterialCarbon Steel
StandardsMSS-SP-110
Overall Length4.16 in
