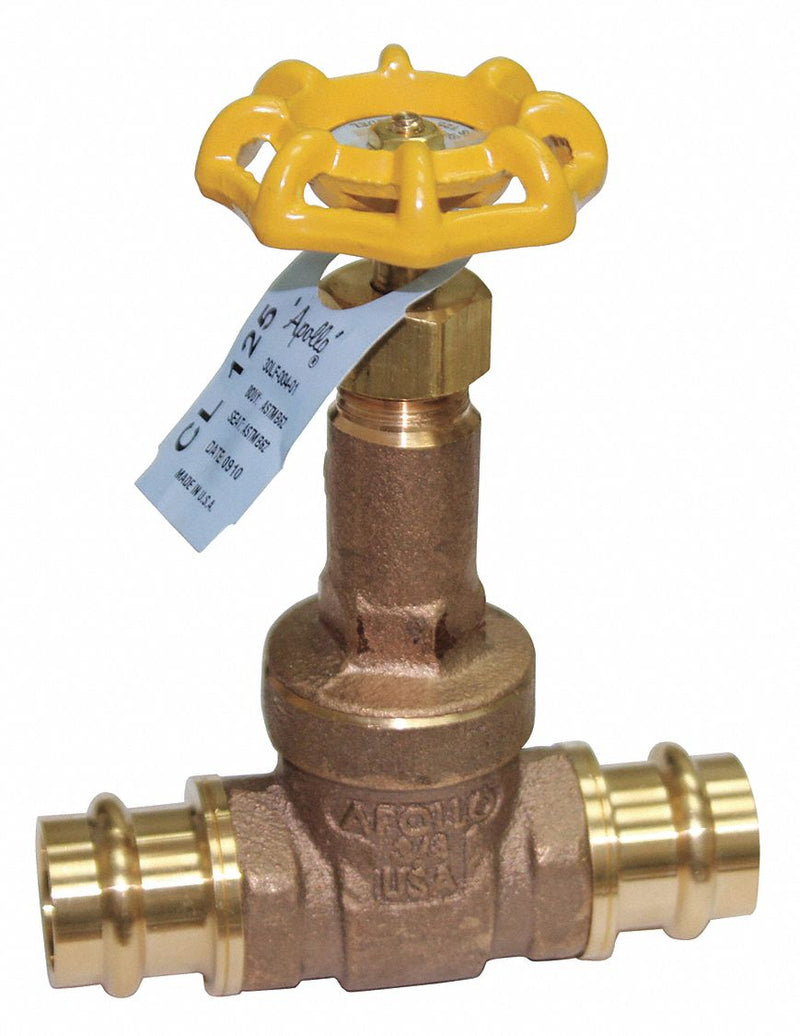

Apollo Gate Valve, Lead-Free Bronze, Press Connection Type, Pipe Size - Valves 1 1/4 in - 30LF03601PR

Apollo ValvesSKU: C1915256
MPN : 30LF03601PR
Weight : 3.35 lb
filler

Price:
$208.52 $254.29

Availability : Usually Ships in 1-3 Business Days

Gate Valve; Body Material - Valves: Lead-Free Bronze; Connection Type: Press; Pipe Size - Valves: 1 1/4 in; Max. Water Pressure - CWP: 200 psi; Valve Max. Fluid Temp.: 250 Degrees F; Valve Stem Type: Non-Rising; Top of Handle to Inlet Center: 8 3/32 in; Inlet to Outlet Length: 5 1/8 in; Stem Material: Bronze; Wedge Material: Bronze; Handle Material: Malleable Iron; Handle Type: Hand Wheel; Standards: ARRA, MSS SP 139, NSF /ANSI 61-8, NSF 372

ItemGate Valve
Body Material - ValvesLead-Free Bronze
Connection TypePress
Pipe Size - Valves1 1/4 in
Max. Water Pressure - CWP200 psi
Valve Max. Fluid Temp.250 Degrees F
Valve Stem TypeNon-Rising
Top of Handle to Inlet Center8 3/32 in
Inlet to Outlet Length5 1/8 in
Stem MaterialBronze
Wedge MaterialBronze
Handle MaterialMalleable Iron
Handle TypeHand Wheel
StandardsARRA, MSS SP 139, NSF /ANSI 61-8, NSF 372
