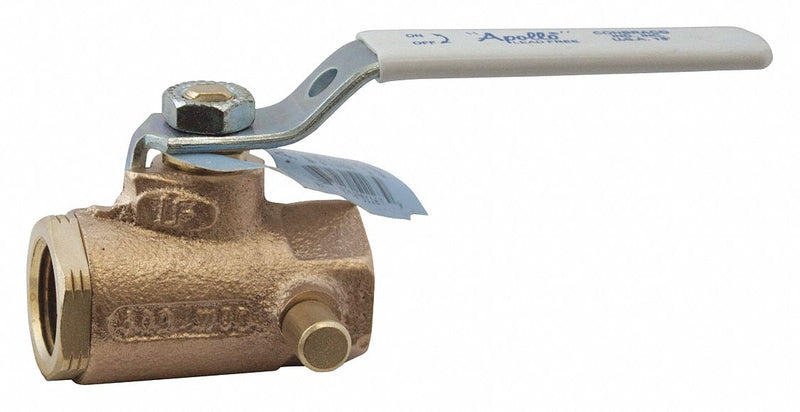

Apollo Ball Valve, Lead-Free Bronze, Inline, 2-Piece, Pipe Size 1 in, Connection Type FNPT x FNPT - 95ALF10501
filler
Availability : Usually Ships in 1-3 Business Days
Low-Lead Bronze Ball Valves with Side Drain, Max. pressure: 400 psi CWP Temp. range: -50 to 400F,2-pc., full port valves are ideal for plumbing or hydronic systems where draining is required. RPTFE seats, PTFE seals, and brass stem. FNPT connections.,Meet MSS SP-110 and NSF 61-8.
| Item | Ball Valve |
| Body Material | Lead-Free Bronze |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 1 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 400 psi CWP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Lead Free Chrome Plated Brass |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | C27450LF Brass |
| Body Seal Material | PTFE |
| Features | Blue Hang Tag, White Grip |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | NSF 61-8 |
| Overall Length | 3.62 in |
