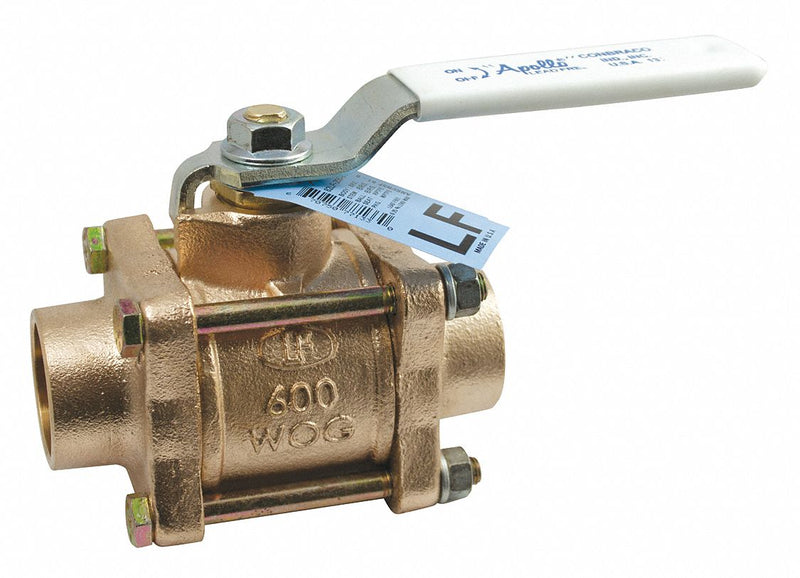

Apollo Ball Valve, Lead-Free Bronze, Inline, 3-Piece, Pipe Size 2 1/2 in, Tube Size 2 1/2 in - 82LF20901
filler
Availability : Usually Ships in 25 Business Days
Low-Lead Bronze 3-Pc. Ball Valves, Full-Port, Max. pressure: 600 psi CWP, 150 psi SWP Temp range: -50 to 400F MPTFE seals,3-pc. design eases in-line maintenance. RPTFE seats, chrome-plated brass ball, and steel zinc-plated handle. Vacuum service to 29" Hg. For use with water, oil, gas, and low-pressure steam. Certified for use in potable water applications.,Meet ANSI/NSF 61-8, Annex G; MSS SP-110 standards.
| Item | Ball Valve |
| Body Material | Lead-Free Bronze |
| Body Style | Inline |
| General Connection Type | Sweat |
| Valve Structure | 3-Piece |
| Pipe Size | 2 1/2 in |
| Tube Size | 2 1/2 in |
| Connection Type | Sweat x Sweat |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Lead Free Chrome Plated Brass |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | C27450LF Brass |
| Body Seal Material | PTFE |
| Features | Blue Hang Tag, White Grip |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | NSF 61-8 |
| Overall Length | 7.25 in |
