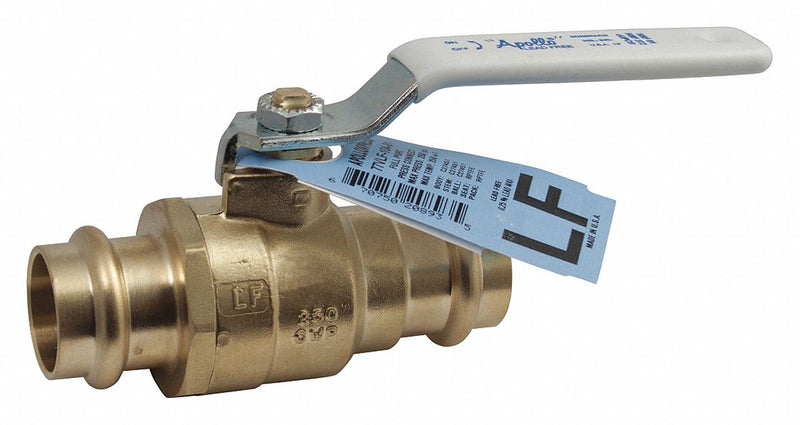

Apollo Ball Valve, Lead-Free Brass, Inline, 2-Piece, Pipe Size 1/2 in, Tube Size 1/2 in - 77VLF14301
filler
Availability : Usually Ships in 25 Business Days
This Apollo XPRESS ball valve has press connections compatible with Rigid press tools and installs in seconds. 100% factory-tested valve with the Leak-Before-Press feature. Suitable for use in heating systems and in potable water applications.
| Item | Ball Valve |
| Body Material | Lead-Free Brass |
| Body Style | Inline |
| General Connection Type | Press |
| Valve Structure | 2-Piece |
| Pipe Size | 1/2 in |
| Tube Size | 1/2 in |
| Connection Type | Press x Press |
| Port | Full |
| Max. Pressure | 250 psi CWP |
| Max. Steam Pressure | 15 psi WSP |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Plated Steel/Insulated Polyvinyl |
| Stem Material | 316 Stainless Steel |
| Features | Press End Connections |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | MSS SP 110 |
| Overall Length | 2.89 in |
