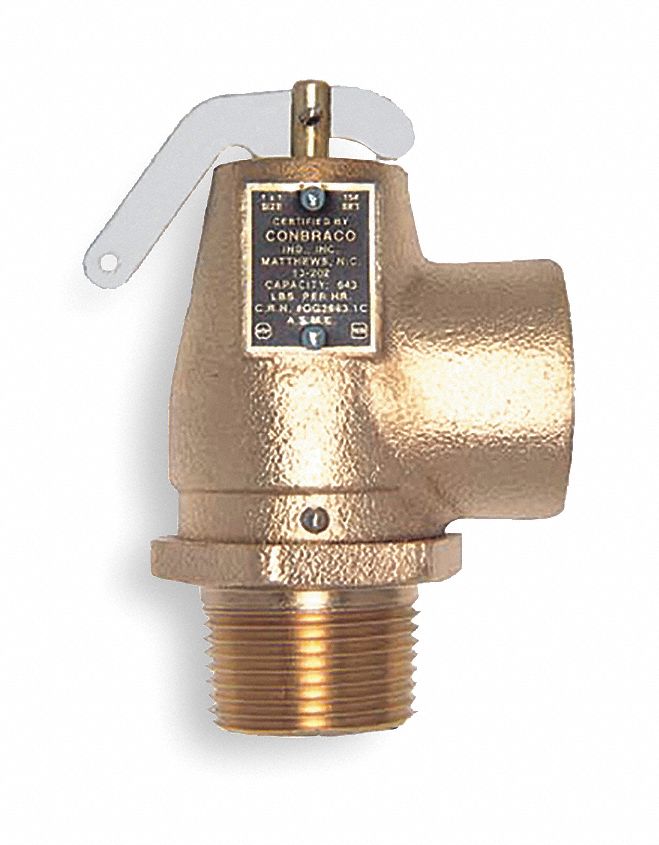

Apollo Cast Bronze Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 13214B15

Apollo ValvesSKU: C1931829
MPN : 13214B15
Weight : 3.24 lb
filler

Price:
$171.96 $209.71

Availability : Usually Ships in 1-3 Business Days

Safety Relief Valve; Body Material: Cast Bronze; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 1 1/2 in; Outlet Size: 2 in; Factory Set Pressure: 15 psi; Pressure Range: 5 to 15 psi; BtuH: 1,900,000; Disc Material: EPDM; Overall Height: 5 1/4 in; Application: Low Pressure Steam Heating and Supply Boilers; Overall Length: 4 in; Seat Material: EPDM; Spring Material: Stainless Steel; Temp. Range: 0 Degrees to 250 Degrees F; Test Lever: Yes; Standards: ASME Section IV, CRN

ItemSafety Relief Valve
Body MaterialCast Bronze
Inlet TypeMNPT
Outlet TypeFNPT
Inlet Size1 1/2 in
Outlet Size2 in
Factory Set Pressure15 psi
Pressure Range5 to 15 psi
BtuH1,900,000
Disc MaterialEPDM
Overall Height5 1/4 in
ApplicationLow Pressure Steam Heating and Supply Boilers
Overall Length4 in
Seat MaterialEPDM
Spring MaterialStainless Steel
Temp. Range0 Degrees to 250 Degrees F
Test LeverYes
StandardsASME Section IV, CRN
