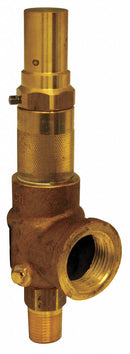

Apollo Bronze Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 511FFBKMAA0150
filler
Availability : Usually Ships in 40 Business Days
This safety relief valve features a full-nozzle design, and can be used in closed systems. It also features metal-to-metal seating and is ideal for pressure vessels and pressure piping systems. Valves are factory preset and sealed to prevent tampering. Not adjustable.
| Item | Safety Relief Valve |
| Body Material | Bronze |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 1 1/4 in |
| Outlet Size | 1 1/2 in |
| Factory Set Pressure | 150 psi |
| Pressure Range | 15 to 250 psi |
| Disc Material | 316 Stainless Steel |
| Overall Height | 10 1/4 in |
| Application | Air and Gas Compressors and Dryers, Pressure Vessels and Pressure Piping System etc |
| Overall Length | 2 3/8 in |
| Seat Material | Metal |
| Spring Material | Stainless Steel |
| Temp. Range | -320 Degrees to 406 Degrees F |
| Test Lever | No |
| Compliance | ASME |
| Standards | ASME |
