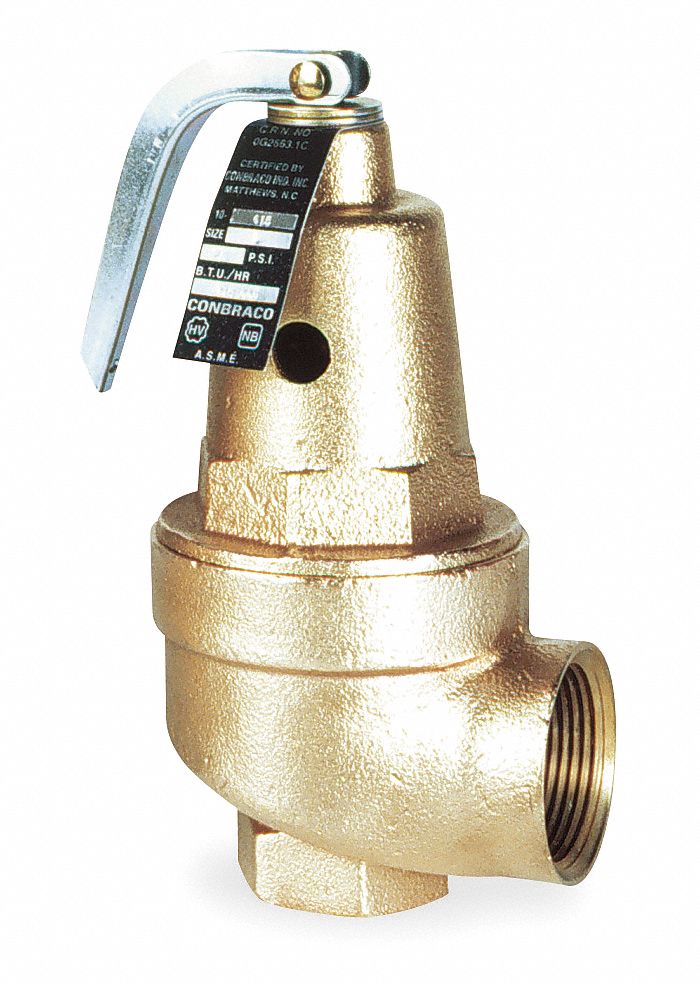

Apollo Bronze Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type - 1060834

Apollo ValvesSKU: C1931847
MPN : 1060834
Weight : 25.45 lb
filler

Price:
$415.57 $506.79

Availability : Usually Ships in 15-20 Business Days

ASME Section IV Safety Relief Valves, Pressure range: 15 to 160 psig Max. temp.: 250F,Protect against excessive water pressure due to failure of controls to regulate BTU input. High BTU capacity rating. Corrosion-resistant with silicone seat. Fabric reinforced, molded diaphragm isolates spring from water at all times. FNPT connections. Designed for boilers, heating systems, and unfired pressure vessels.,Meet ASME Section IV Coded for hot water; HV National Board Certified and CRN.

ItemSafety Relief Valve
Body MaterialBronze
Inlet TypeFNPT
Outlet TypeFNPT
Inlet Size2 in
Outlet Size2 in
Factory Set Pressure150 psi
Pressure Range15 to 160 psi
BtuH19,565,000
Disc MaterialBrass ASTM B16
Overall Height14 in
ApplicationHot Water Heating Boilers and Hot Water Supply Systems
Overall Length7 3/16 in
Seat MaterialSilicone
Spring MaterialPlated Alloy Steel
Temp. Range0 Degrees to 250 Degrees F
Test LeverYes
StandardsASME Section IV, CRN, CSA
