Availability : Usually Ships in 25 Business Days

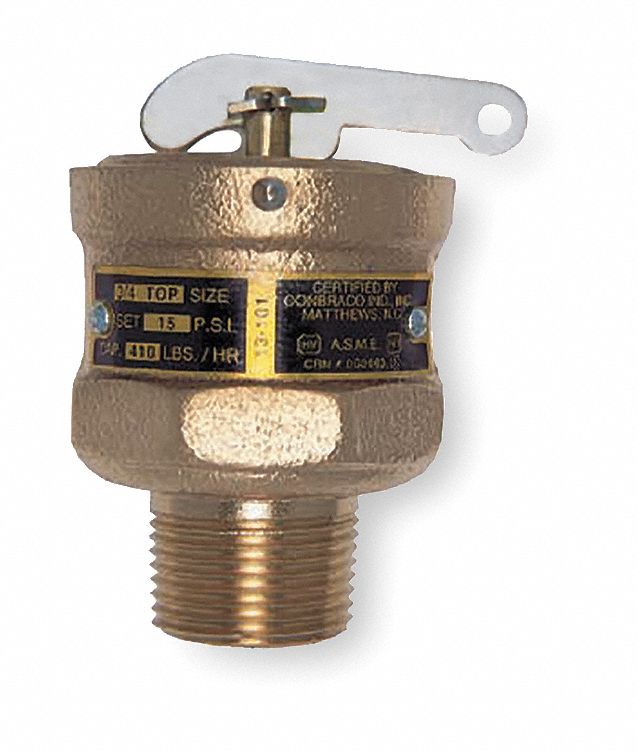

Safety Relief Valve; Body Material: Cast Bronze; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Factory Set Pressure: 10 psi; Pressure Range: 5 to 15 psi; Steam Capacity (Lb./Hr.): 372; Disc Material: EPDM; Overall Height: 2 7/8 in; Application: Low Pressure Steam Heating and Supply Boilers; Overall Length: 2 3/16 in; Seat Material: EPDM; Spring Material: Stainless Steel; Temp. Range: 0 Degrees to 250 Degrees F; Test Lever: Yes; Standards: CRN
Item | Safety Relief Valve |
Body Material | Cast Bronze |
Inlet Type | MNPT |
Outlet Type | FNPT |
Inlet Size | 3/4 in |
Outlet Size | 3/4 in |
Factory Set Pressure | 10 psi |
Pressure Range | 5 to 15 psi |
Steam Capacity (Lb./Hr.) | 372 |
Disc Material | EPDM |
Overall Height | 2 7/8 in |
Application | Low Pressure Steam Heating and Supply Boilers |
Overall Length | 2 3/16 in |
Seat Material | EPDM |
Spring Material | Stainless Steel |
Temp. Range | 0 Degrees to 250 Degrees F |
Test Lever | Yes |
Standards | CRN |
