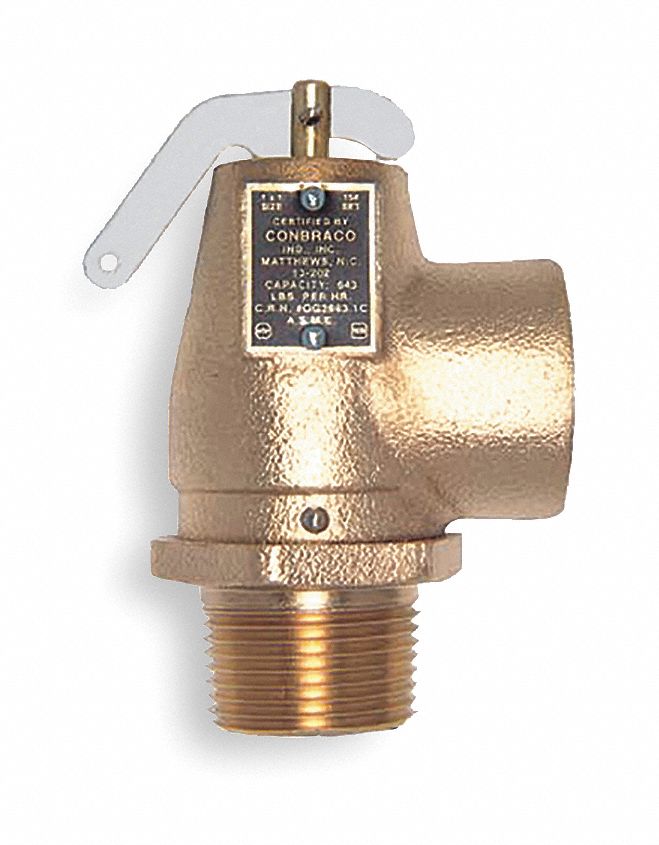

Apollo Cast Bronze Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 13211B10
filler
Availability : Usually Ships in 1-3 Business Days
Safety Relief Valve; Body Material: Cast Bronze; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Factory Set Pressure: 10 psi; Pressure Range: 5 to 15 psi; Steam Capacity (Lb./Hr.): 383; Disc Material: EPDM; Overall Height: 3 11/16 in; Application: Low Pressure Steam Heating and Supply Boilers; Overall Length: 2 5/6 in; Seat Material: EPDM; Spring Material: Stainless Steel; Temp. Range: 0 Degrees to 250 Degrees F; Test Lever: Yes; Standards: CRN
| Item | Safety Relief Valve |
| Body Material | Cast Bronze |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Factory Set Pressure | 10 psi |
| Pressure Range | 5 to 15 psi |
| Steam Capacity (Lb./Hr.) | 383 |
| Disc Material | EPDM |
| Overall Height | 3 11/16 in |
| Application | Low Pressure Steam Heating and Supply Boilers |
| Overall Length | 2 5/6 in |
| Seat Material | EPDM |
| Spring Material | Stainless Steel |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Test Lever | Yes |
| Standards | CRN |
