Availability : Usually Ships in 10-12 Business Days

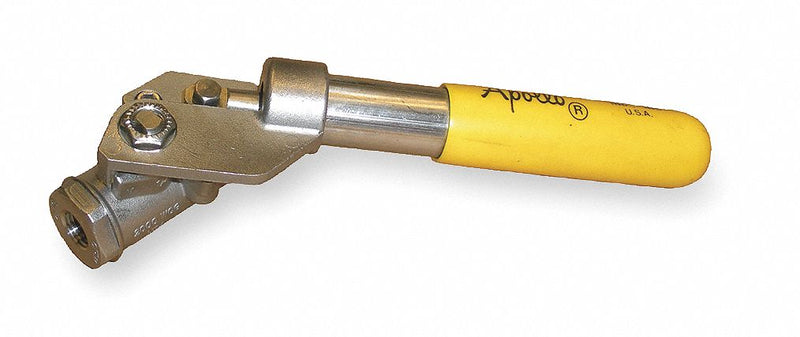

This ball valve features 316 Stainless Steel construction. 316 Stainless Steel offers higher corrosion resistance than 304 stainless steel. It includes up to 3% molybdenum, which helps prevent corrosion from many industrial chemicals and solvents.
Item | Ball Valve |
Body Material | 316 Stainless Steel |
Body Style | Inline |
General Connection Type | Female NPT |
Valve Structure | 2-Piece |
Pipe Size | 1 1/2 in |
Connection Type | FNPT x FNPT |
Port | Standard |
Max. Pressure | 1500 psi CWP |
Max. Steam Pressure | 150 psi WSP |
Temp. Range | -50 Degrees to 500 Degrees F |
Ball Material | 316 Stainless Steel |
Seat Material | MPTFE |
Stem Type | Blowout Proof |
Handle Type | Spring Return |
Handle Material | 304 Stainless Steel with Vinyl Grip |
Stem Material | 316 Stainless Steel |
Body Seal Material | PTFE |
Features | All Stainless Steel Construction |
Ball Valve Product Group | Manual |
Valve Basic Body Material | Stainless Steel |
Standards | MSS SP-110 |
Overall Length | 4.16 in |
