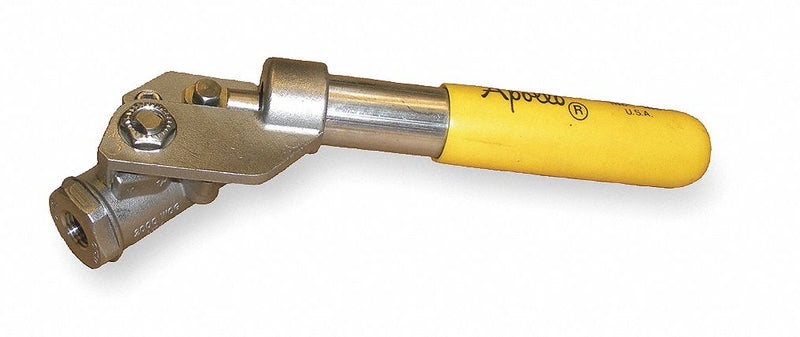

Apollo Ball Valve, 316 Stainless Steel, Inline, 2-Piece, Pipe Size 1/4 in, Connection Type FNPT x FNPT - 7650101A
filler
Availability : Usually Ships in 15 Business Days
This ball valve features 316 Stainless Steel construction. 316 Stainless Steel offers higher corrosion resistance than 304 stainless steel. It includes up to 3% molybdenum, which helps prevent corrosion from many industrial chemicals and solvents.
| Item | Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 1/4 in |
| Connection Type | FNPT x FNPT |
| Port | Standard |
| Max. Pressure | 2000 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -50 Degrees to 500 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | MPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Spring Return |
| Handle Material | 304 Stainless Steel with Vinyl Grip |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Features | All Stainless Steel Construction |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | MSS SP-110 |
| Overall Length | 4.16 in |
