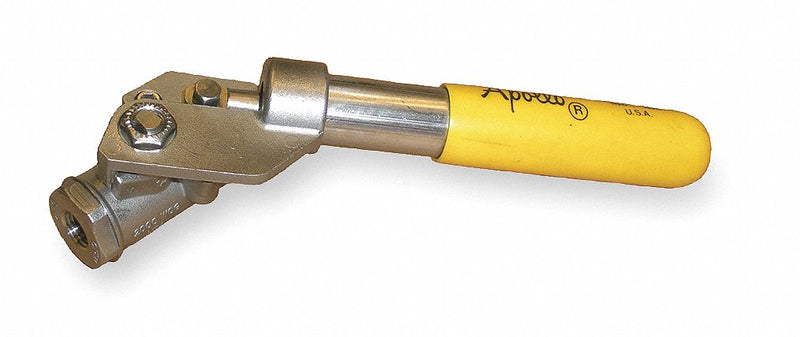

Apollo Ball Valve, 316 Stainless Steel, Inline, 2-Piece, Pipe Size 2 in, Connection Type FNPT x FNPT - 7650801

Apollo ValvesSKU: C1933223
MPN : 7650801
Weight : 7.79 lb

filler

Price:
$711.20 $1,147.10

Availability : Usually Ships in 15 Business Days

This ball valve features 316 Stainless Steel construction. 316 Stainless Steel offers higher corrosion resistance than 304 stainless steel. It includes up to 3% molybdenum, which helps prevent corrosion from many industrial chemicals and solvents.

ItemBall Valve
Body Material316 Stainless Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size2 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure1500 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-50 Degrees to 500 Degrees F
Ball Material316 Stainless Steel
Seat MaterialMPTFE
Stem TypeBlowout Proof
Handle TypeSpring Return
Handle Material304 Stainless Steel with Vinyl Grip
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
FeaturesAll Stainless Steel Construction
Ball Valve Product GroupManual
Valve Basic Body MaterialStainless Steel
StandardsMSS SP-110
Overall Length4.16 in
