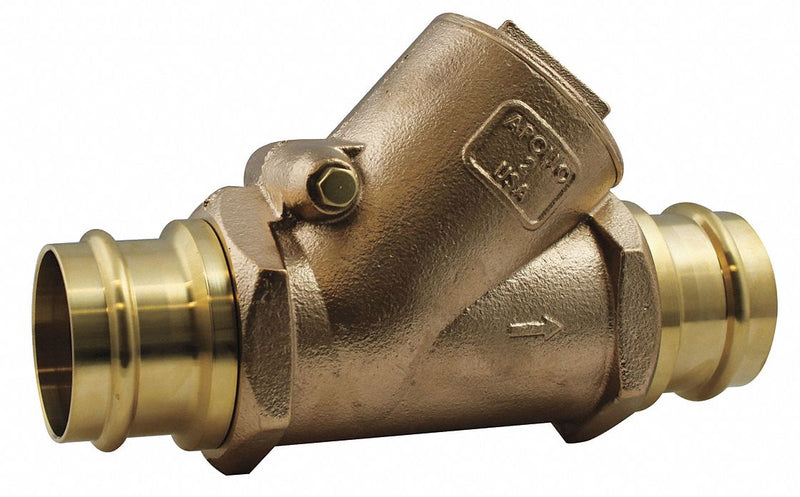

Apollo Check Valve, 1 1/4 in, Single, Inline Swing, Bronze, Press x Press - 61YLF206T1PR
filler
Availability : Usually Ships in 7-10 Business Days
Low-Lead Bronze Swing Check Valves, Max. pressure: 200 psi Max. temp.: 250F,Designed for direct mechanical connection to ASTM B88 Type K, L, and M hard drawn copper tubing. PTFE seats. Press connection. Not for use with reciprocating pumps and similar applications. Not suitable for flammable gas or steam service. Can be mounted vertically or horizontally.,Meet NSF/ANSI 61-8 (2010) Annex F and G, and MSS-SP139.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 1 1/4 in |
| Connection Type - Check Valves | Press x Press |
| Cracking Pressure - Check Valves | 0.5 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 180 Degrees F |
| Min. Temp. - Valves | 33 Degrees F |
| Max. Water Pressure - Valves | 200 psi |
| Max. Steam Pressure - Valves | 15 psi WSP |
| Seat Material - Check Valves | RPTFE |
| Flow - Valves | 39 gpm |
| Application - Valves | General Purpose |
| Length | 7 in |
| Width | 4 1/2 in |
| Overall Height | 2 63/64 in |
| Standards | NSF 372, NSF61-G |
