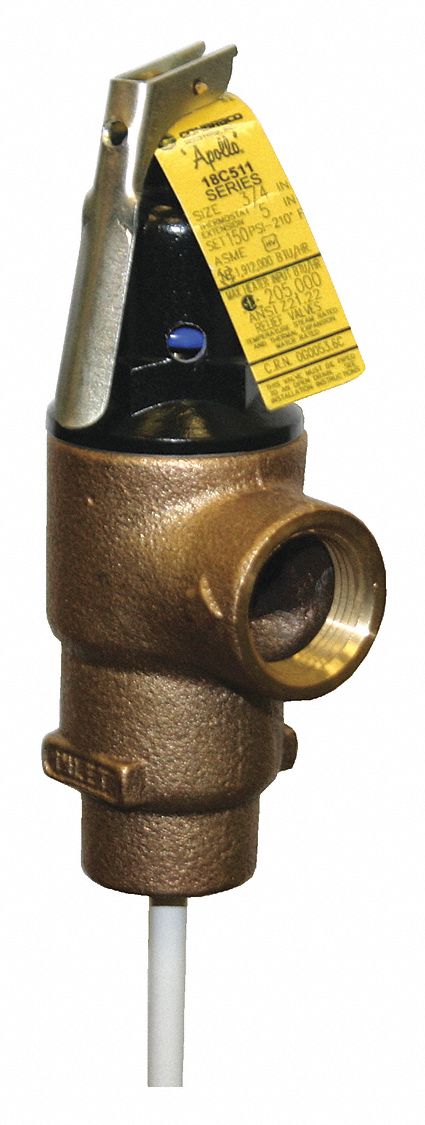

Apollo Temperature and Pressure Relief Valve, 1,619,000 BtuH, 125 psi, 5 in Thermostat Length - 18C5125125

Apollo ValvesSKU: C1932158
MPN : 18C5125125
Weight : 1.45 lb

filler

Price:
$126.82 $204.55

Availability : Usually Ships in 25 Business Days

Temperature and Pressure Relief Valve; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Thermostat Length: 5 in; Body Height: 10 7/8 in; BtuH: 1,619,000; Factory Set Pressure: 125 psi; Max. Temp.: 210 Degrees F; Shank Length: Standard; Auto Re-Seating: Yes; Body Material: Bronze; Spring Material: Stainless Steel; Body Width: 1 1/2 in; Standards: Certified ANSI Z21.22 And CSA 4.4, Listed By ASME Section IV And CSA

ItemTemperature and Pressure Relief Valve
Inlet TypeFNPT
Outlet TypeFNPT
Inlet Size3/4 in
Outlet Size3/4 in
Thermostat Length5 in
Body Height10 7/8 in
BtuH1,619,000
Factory Set Pressure125 psi
Max. Temp.210 Degrees F
Shank LengthStandard
Auto Re-SeatingYes
Body MaterialBronze
Spring MaterialStainless Steel
Body Width1 1/2 in
StandardsCertified ANSI Z21.22 And CSA 4.4, Listed By ASME Section IV And CSA
