Availability : Usually Ships in 25 Business Days

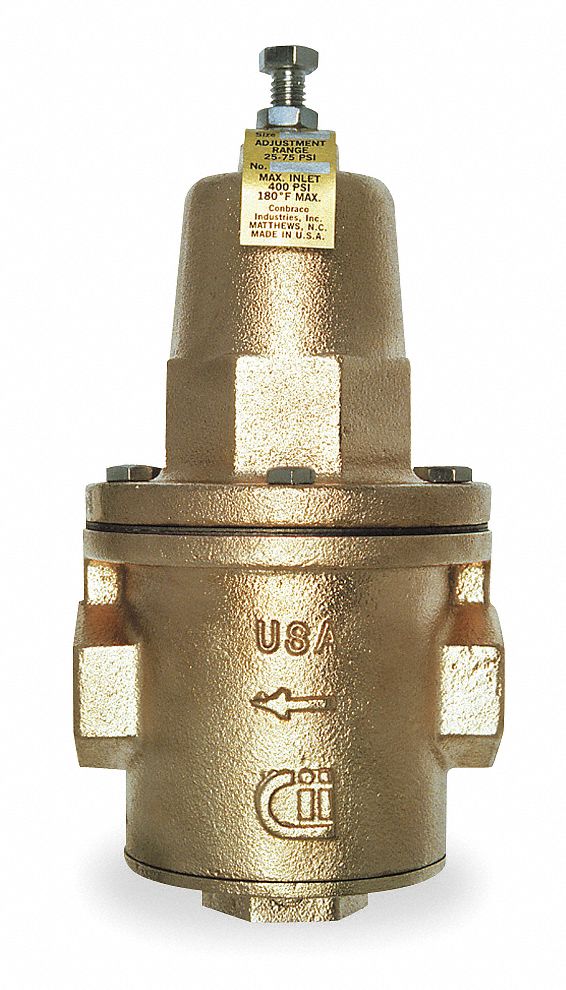

Features an enlarged diaphragm and orifice and a spring cage to handle high capacities. Valve has a built-in thermal expansion bypass, adjusting screws, nut, cap bolts, and easy access for maintenance/repair.
Item | Water Pressure Reducing Valve |
Valve Type | Super Capacity |
Strainer | No |
Material | Bronze |
Pipe Size | 1 in |
Preset Pressure Settings | 50 psi |
Pressure Adjustment Range | 25 to 75 psi |
Connection Type | FNPT |
Height | 7 1/2 in |
Length | 4 11/16 in |
Max. Temp. | 180 Degrees F |
Max. Pressure | 400 psi |
Standards | ANSI A112.262, ASSE 1003, CSA B356, IAPMO |
