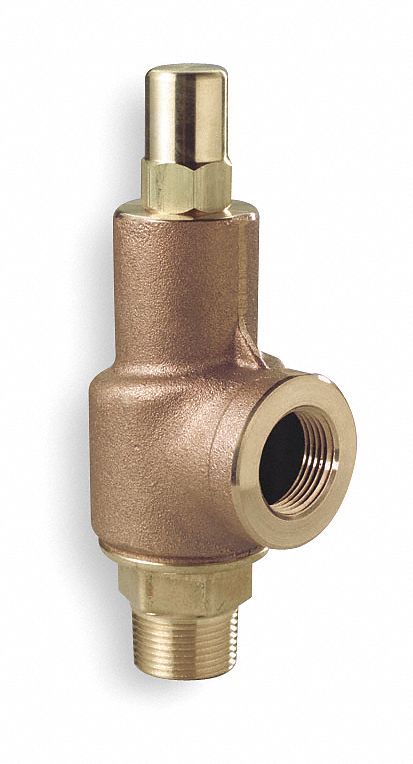

Aquatrol Bronze Adjustable Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 69A1S-250

Aquatrol Valve CompanySKU: C1931868
MPN : 69A1S-250
Weight : 1.97 lb

filler

Price:
$279.34 $450.55

Availability : Usually Ships in 3 Business Days

Series 69 Relief Valves, Max. temp.: 450F,Field-adjustable pressure is factory set to midrange for minimal effect on flow capacity rates. Adjustment requires no disassembly; simply remove hex cap. Closed bonnet, sealed hex cap, and lapped metal seating eliminate leakage. Stainless steel springs. MNPT x FNPT connections. For pressure relief, liquid relief, continuous bypass, and overprotection for pumping stations, tanks, hydraulics, fluid, and pipelines.

ItemAdjustable Relief Valve
Body MaterialBronze
Inlet TypeMNPT
Outlet TypeFNPT
Inlet Size1/2 in
Outlet Size1/2 in
Factory Set Pressure250 psi
Pressure Range201 to 250 psi
Disc Material316 Stainless Steel
Overall Height5 7/8 in
ApplicationLiquids
Seat Material316 Stainless Steel
Spring Material316 Stainless Steel
Temp. Range0 Degrees to 450 Degrees F
Test LeverNo
