Availability : Usually Ships in 1-3 Business Days

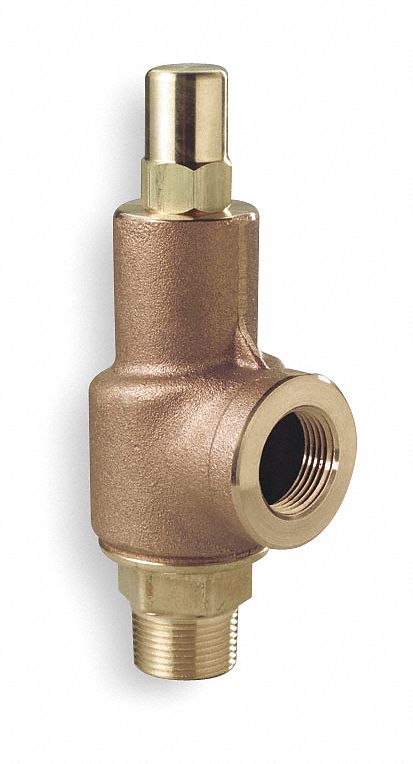

Series 69 Relief Valves, Max. temp.: 450F,Field-adjustable pressure is factory set to midrange for minimal effect on flow capacity rates. Adjustment requires no disassembly; simply remove hex cap. Closed bonnet, sealed hex cap, and lapped metal seating eliminate leakage. Stainless steel springs. MNPT x FNPT connections. For pressure relief, liquid relief, continuous bypass, and overprotection for pumping stations, tanks, hydraulics, fluid, and pipelines.
|Item||Adjustable Relief Valve|
|Inlet Size||1/2 in|
|Outlet Size||1/2 in|
|Factory Set Pressure||300 psi|
|Pressure Range||251 to 300 psi|
|Disc Material||316 Stainless Steel|
|Overall Height||5 7/8 in|
|Seat Material||316 Stainless Steel|
|Spring Material||316 Stainless Steel|
|Temp. Range||0 Degrees to 450 Degrees F|
