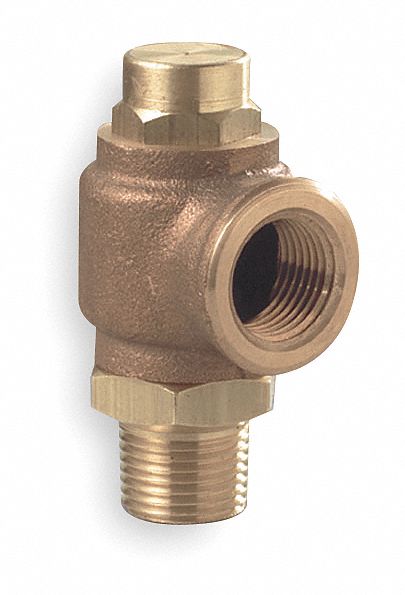

Aquatrol Bronze Adjustable Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 55A-25

Aquatrol Valve CompanySKU: C1931883
MPN : 55A-25
Weight : 0.7 lb

$53.77 $65.57

Availability : Usually Ships in 1-3 Business Days

Easily adjusted in the field by removing the hex cap, this AQUATROL adjustable relief valve is ideal for pressure relief, liquid relief, bypass, and over-protection. Easy to clean and maintain by simply removing the bonnet. Model has a bronze disc thats lapped into position to minimize leakage. For liquid relief lines, tanks, sprinkler systems, and overprotection.

ItemAdjustable Relief Valve
Body MaterialBronze
Inlet TypeMNPT
Outlet TypeFNPT
Inlet Size1/4 in
Outlet Size1/2 in
Factory Set Pressure25 psi
Pressure Range0 to 100 psi
Disc MaterialBronze
Overall Height3 in
Seat MaterialBronze
Spring Material316 Stainless Steel
Temp. Range0 Degrees to 450 Degrees F
Test LeverNo
