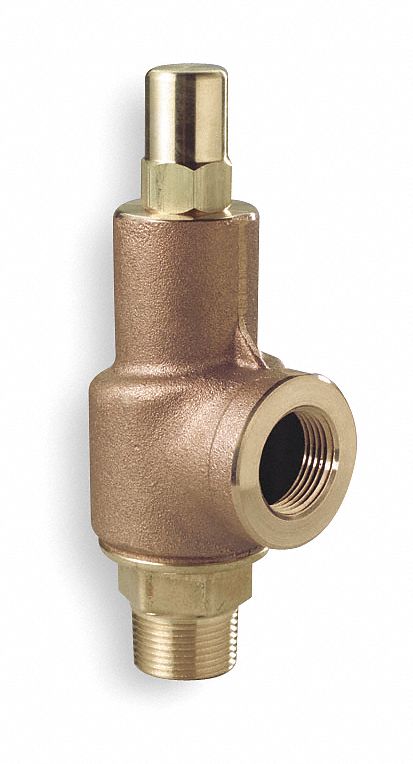

Aquatrol Bronze Adjustable Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 69F1S-100
filler
Availability : Usually Ships in 3 Business Days
Series 69 Relief Valves, Max. temp.: 450F,Field-adjustable pressure is factory set to midrange for minimal effect on flow capacity rates. Adjustment requires no disassembly; simply remove hex cap. Closed bonnet, sealed hex cap, and lapped metal seating eliminate leakage. Stainless steel springs. MNPT x FNPT connections. For pressure relief, liquid relief, continuous bypass, and overprotection for pumping stations, tanks, hydraulics, fluid, and pipelines.
| Item | Adjustable Relief Valve |
| Body Material | Bronze |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 2 in |
| Outlet Size | 2 in |
| Factory Set Pressure | 100 psi |
| Pressure Range | 51 to 100 psi |
| Disc Material | 316 Stainless Steel |
| Overall Height | 11 1/8 in |
| Application | Liquids |
| Seat Material | 316 Stainless Steel |
| Spring Material | 316 Stainless Steel |
| Temp. Range | 0 Degrees to 450 Degrees F |
| Test Lever | No |
