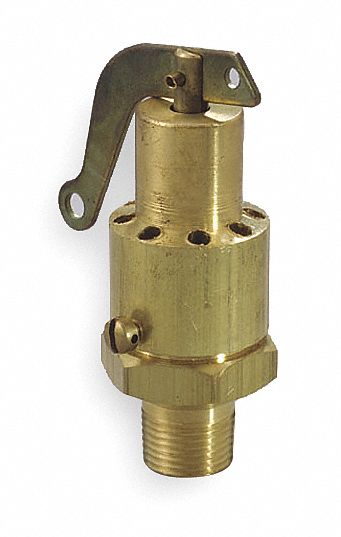

Aquatrol Brass Safety Relief Valve, MNPT Inlet Type, Vented Outlet Type - 130A-50

Aquatrol Valve CompanySKU: C1931955
MPN : 130A-50
Weight : 0.51 lb
filler

Price:
$86.27 $105.21

Availability : Usually Ships in 1-3 Business Days

ASME Section VIII Brass Safety Relief Valves, Max. temp.: 406F,Brass construction with bronze-plated lift lever, stainless steel springs, and precision-lapped metal-to-metal seating with built-in blow-down. Use on compressor, tank, steam, and air production lines, as well as in OEM applications. MNPT inlet; vented top outlet.,Meet ASME Section VIII and CRN standards.

ItemSafety Relief Valve
Body MaterialBrass
Inlet TypeMNPT
Outlet TypeVented
Inlet Size1/4 in
Factory Set Pressure50 psi
Pressure Range0 to 200 psi
Steam Capacity (Lb./Hr.)79
Disc MaterialBronze
Overall Height2 7/8 in
ApplicationAir, Gas or Steam
Seat MaterialBronze
Spring Material316 Stainless Steel
Temp. Range0 Degrees to 406 Degrees F
Test LeverYes
StandardsASME Section VIII / CRN
