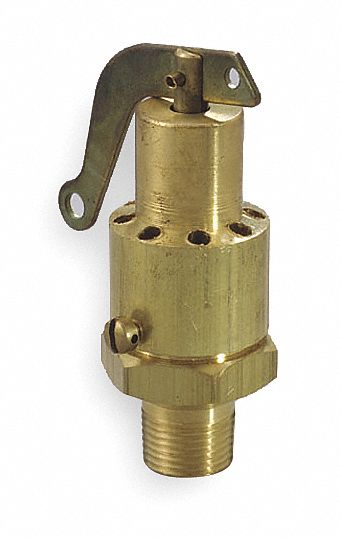

Aquatrol Brass Safety Relief Valve, MNPT Inlet Type, Vented Outlet Type - 130B-25
filler
Availability : Usually Ships in 3-5 Business Days
ASME Section VIII Brass Safety Relief Valves, Max. temp.: 406F,Brass construction with bronze-plated lift lever, stainless steel springs, and precision-lapped metal-to-metal seating with built-in blow-down. Use on compressor, tank, steam, and air production lines, as well as in OEM applications. MNPT inlet; vented top outlet.,Meet ASME Section VIII and CRN standards.
| Item | Safety Relief Valve |
| Body Material | Brass |
| Inlet Type | MNPT |
| Outlet Type | Vented |
| Inlet Size | 3/8 in |
| Factory Set Pressure | 25 psi |
| Pressure Range | 0 to 200 psi |
| Steam Capacity (Lb./Hr.) | 48 |
| Disc Material | Bronze |
| Overall Height | 2 7/8 in |
| Application | Air, Gas or Steam |
| Seat Material | Bronze |
| Spring Material | 316 Stainless Steel |
| Temp. Range | 0 Degrees to 406 Degrees F |
| Test Lever | Yes |
| Standards | ASME Section VIII / CRN |
