Availability : Usually Ships in 5 Business Days

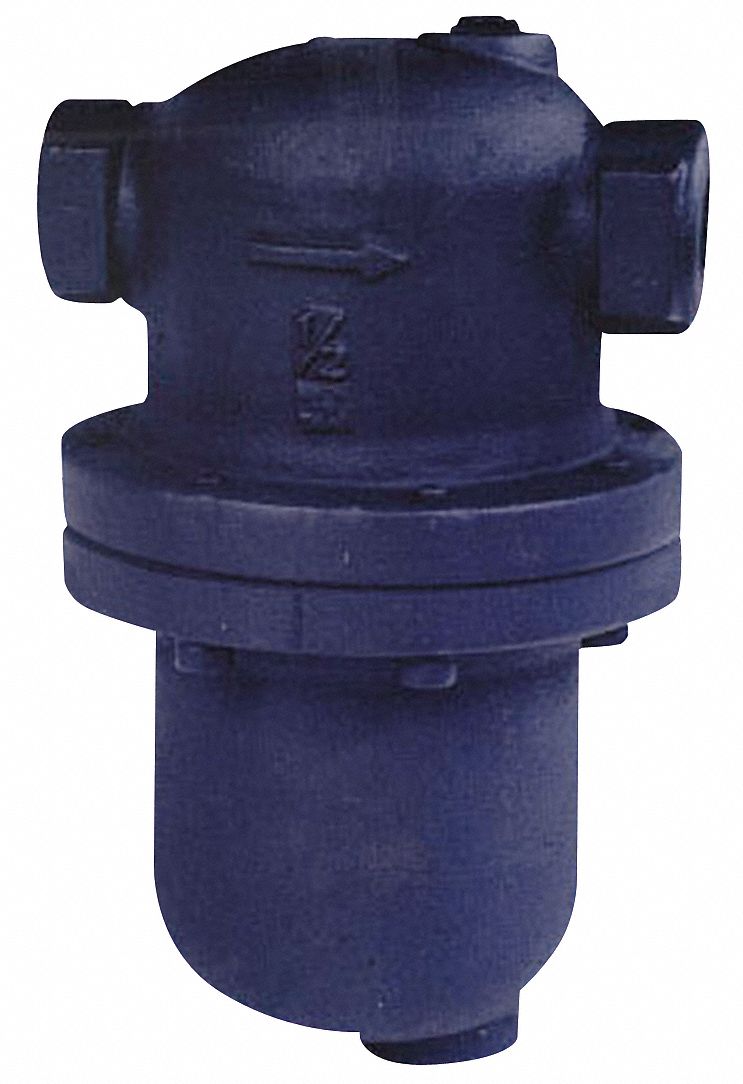

Ductile Iron Drain Separators, Max. pressure: 300 psi Max. temp.: 430F,Can eliminate up to 98% of all entrained liquids and particles as small as 10 microns. Features no moving parts and a cyclone design to maximize liquid separation efficiency with low pressure loss.
Item | Steam Separator |
Connection Type | FNPT |
Pipe Size | 1 1/2 in |
Drain Connection | 1 in |
Body Material | Ductile Iron |
Max. Pressure | 300 psi |
Steam Capacity @ 100 psig | 1,338 lb/hr |
Max. Temp. | 430 Degrees F |
Overall Height | 11 1/8 in |
Overall Width | 7 1/2 in |
