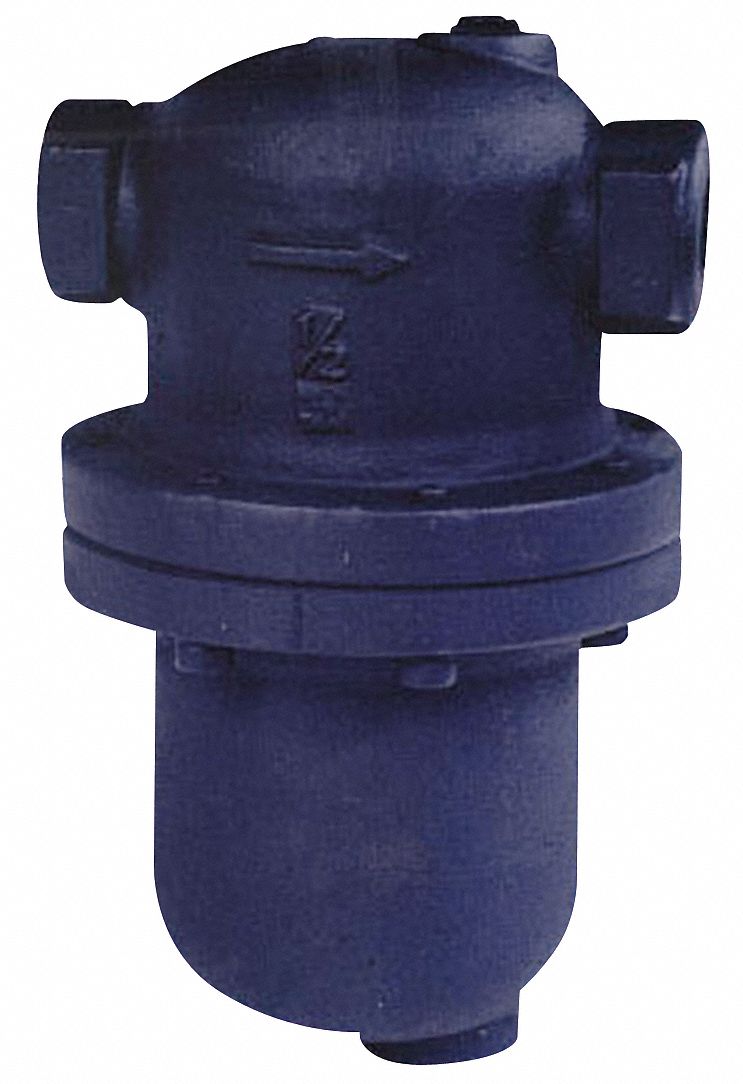

Armstrong 3/4 in Ductile Iron Steam Separator - DS-1-075
filler
Availability : Usually Ships in 5 Business Days
Ductile Iron Drain Separators, Max. pressure: 300 psi Max. temp.: 430F,Can eliminate up to 98% of all entrained liquids and particles as small as 10 microns. Features no moving parts and a cyclone design to maximize liquid separation efficiency with low pressure loss.
| Item | Steam Separator |
| Connection Type | FNPT |
| Pipe Size | 3/4 in |
| Drain Connection | 3/4 in |
| Body Material | Ductile Iron |
| Max. Pressure | 300 psi |
| Steam Capacity @ 100 psig | 351 lb/hr |
| Max. Temp. | 430 Degrees F |
| Overall Height | 9 9/16 in |
| Overall Width | 5 15/16 in |
