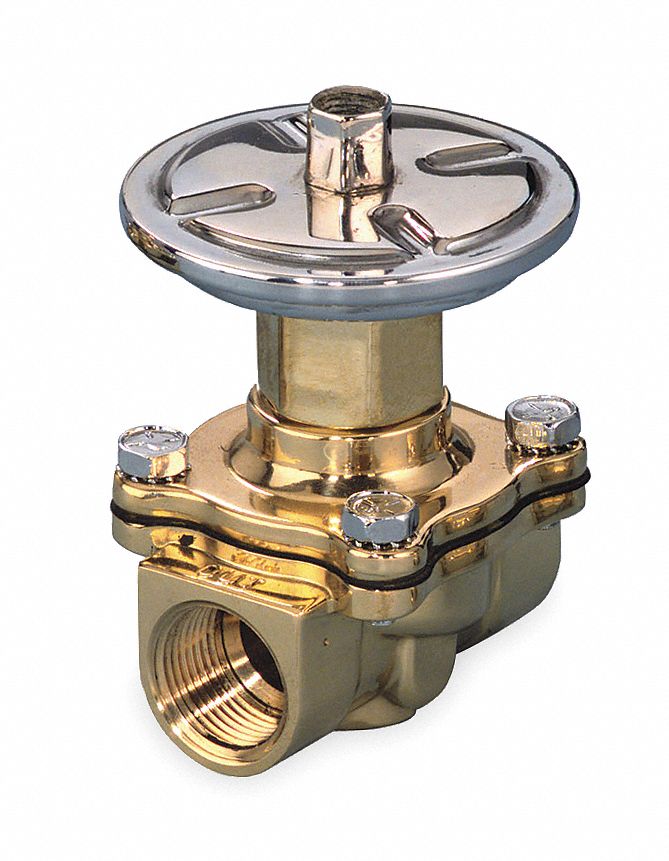

Air Operated Valve; Pipe Size: 1 in; Valve Design: 2-Way; Valve Configuration: Normally Closed; Orifice Dia.: 1 in; Coefficient of Volume: 13; Min. Operating Pressure Differential: 5 psi; Max. Operating Pressure Differential: 125 psi; Max. Fluid Temp.: 180 Degrees F; Air Inlet: 1/8 in FNPT; Inlet Pressure: 30 to 125 psi; Body Material: Brass; Gasket Material: NBR; Seat Material: NBR; Center Line Pipe Center Size: 4 3/8 in; Overall Length: 3 3/4 in; Overall Width: 2 15/16 in; Overall Height: 6 in
| Item | Air Operated Valve |
| Pipe Size | 1 in |
| Valve Design | 2-Way |
| Valve Configuration | Normally Closed |
| Orifice Dia. | 1 in |
| Coefficient of Volume | 13 |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential | 125 psi |
| Max. Fluid Temp. | 180 Degrees F |
| Air Inlet | 1/8 in FNPT |
| Inlet Pressure | 30 to 125 psi |
| Body Material | Brass |
| Gasket Material | NBR |
| Seat Material | NBR |
| Center Line Pipe Center Size | 4 3/8 in |
| Overall Length | 3 3/4 in |
| Overall Width | 2 15/16 in |
| Overall Height | 6 in |
