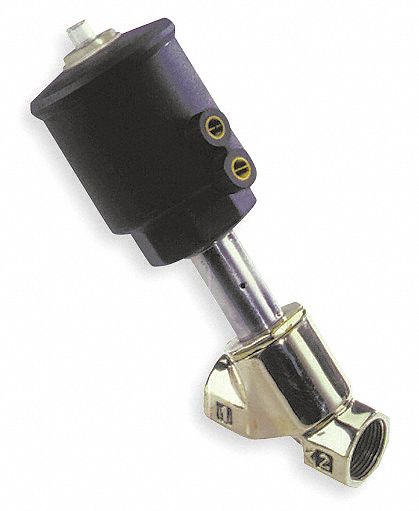

ASCO Bronze Angle Body Piston Valve, 2-Way/2-Position Valve Design, Normally Closed - 8290B002

ASCOSKU: C1935723
MPN : 8290B002
Weight : 2.85 lb
filler

Price:
$348.03 $424.43

Availability : Usually Ships in 7-10 Business Days

Angle Body Piston Valve; Solenoid Valve Product Group: Angle Body Piston Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Air, Inert Gases, Light Slurries, Oil, Water; Pipe Size - Valves: 1/2 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Water: 240 psi; Max. Operating Pressure Differential Steam: 150 psi; Environmental Rating - Valves: Indoor, Outdoor; Coefficient of Volume: 5.7; Body Material - Valves: Bronze; Seal Material - Valves: PTFE; Orifice Dia.: 1/2 in; Ambient Temp. Range: 15 Degrees to 140 Degrees F; Max. Fluid Temp.: 366 Degrees F; Min. Pilot Pressure: 38 psi; Max. Pilot Pressure: 150 psi; Stem Material: 431 Stainless Steel; Disc Material: Brass; Operator Size: 63 mm; Center Line Pipe Center Size: 6 5/8 in; Viscosity: 2,700 SUS; Overall Length: 2 9/16 in; Overall Width: 6 7/10 in; Overall Height: 7 1/4 in; Actuator: Pilot Solenoid Valve, Not Included

ItemAngle Body Piston Valve
Solenoid Valve Product GroupAngle Body Piston Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Slurries, Oil, Water
Pipe Size - Valves1/2 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Water240 psi
Max. Operating Pressure Differential Steam150 psi
Environmental Rating - ValvesIndoor, Outdoor
Coefficient of Volume5.7
Body Material - ValvesBronze
Seal Material - ValvesPTFE
Orifice Dia.1/2 in
Ambient Temp. Range15 Degrees to 140 Degrees F
Max. Fluid Temp.366 Degrees F
Min. Pilot Pressure38 psi
Max. Pilot Pressure150 psi
Stem Material431 Stainless Steel
Disc MaterialBrass
Operator Size63 mm
Center Line Pipe Center Size6 5/8 in
Viscosity2,700 SUS
Overall Length2 9/16 in
Overall Width6 7/10 in
Overall Height7 1/4 in
ActuatorPilot Solenoid Valve, Not Included
