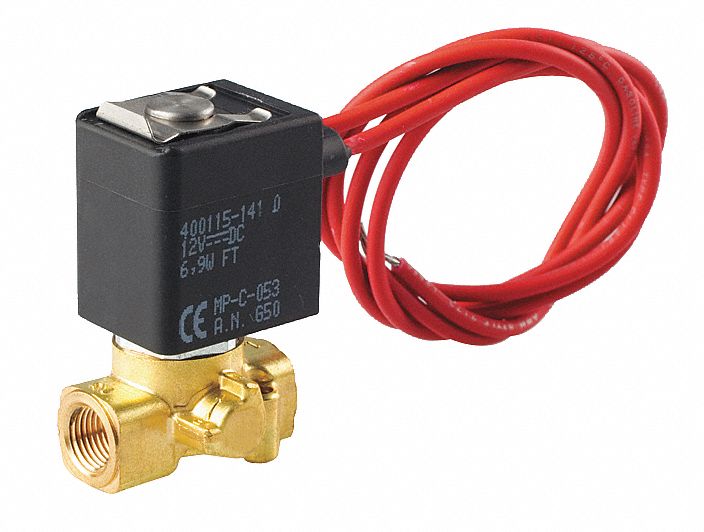

2-Way Combustion Shut-Off Valves,Typical combustible media include natural gas and oil.
| Item | Fuel Gas Solenoid Valve |
| Solenoid Valve Product Group | Fuel Gas Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Fuel Gas |
| Pipe Size - Valves | 1/8 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 200 psi |
| Max. Operating Pressure Differential Water | 200 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 24V AC |
| Coefficient of Volume | 0.16 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | FKM |
| Max. Operating Pressure Differential | 65 psi |
| Orifice Dia. | 7/64 in |
| BtuH | 9,000 |
| Ambient Temp. Range | -22 Degrees to 140 Degrees F |
| Watts | 6.3 W |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Coil Enclosure | Open Frame |
| Electrical Connections | 18 in Leads |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 60 |
| Overall Length | 1 3/4 in |
| Overall Width | 1 in |
| Overall Height | 2 3/32 in |
| Center Line Pipe Center Size | 1 13/16 in |
| Application | For Control of Commercial and Industrial Gas Pilot Controls |
| Standards | CSA, NSF Certified, UL |
