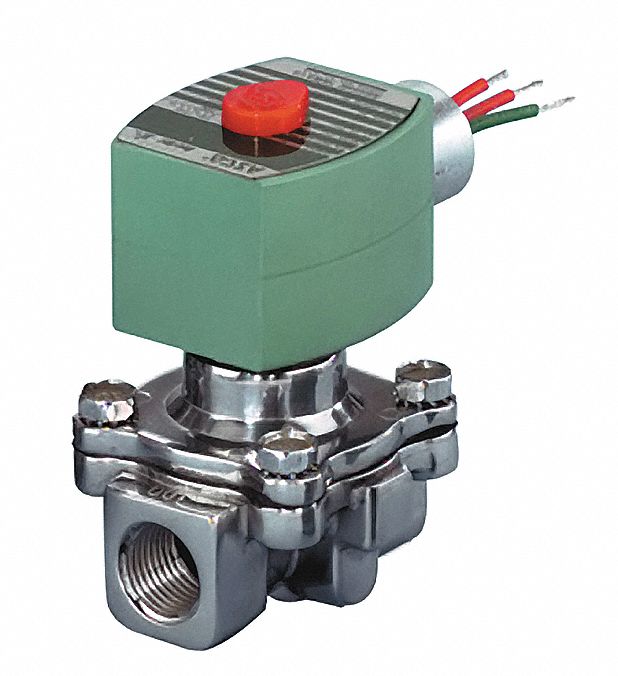

2-Way Combustion Shut-Off Valves,Typical combustible media include natural gas and oil.
| Item | Air and Fuel Gas Solenoid Valve |
| Solenoid Valve Product Group | Air and Fuel Gas Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Fuel Gas |
| Pipe Size - Valves | 3/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 50 psi |
| Max. Operating Pressure Differential Water | 50 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 12V DC |
| Coefficient of Volume | 5.1 |
| Body Material - Valves | Aluminum |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Max. Operating Pressure Differential | 25 psi |
| Orifice Dia. | 3/4 in |
| BtuH | 247,500 |
| Ambient Temp. Range | 32 Degrees to 104 Degrees F |
| Watts | 11.6 W |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Coil Enclosure | General Purpose No Junction Box and Watertight |
| Electrical Connections | 18 in Leads |
| Max. Fluid Temp. | 104 Degrees F |
| Hz | 60 |
| Overall Length | 3 5/16 in |
| Overall Width | 2 11/32 in |
| Overall Height | 4 7/16 in |
| Center Line Pipe Center Size | 3 5/8 in |
| Application | Air and Vacuum Service |
| Standards | CSA, FM, UL |
