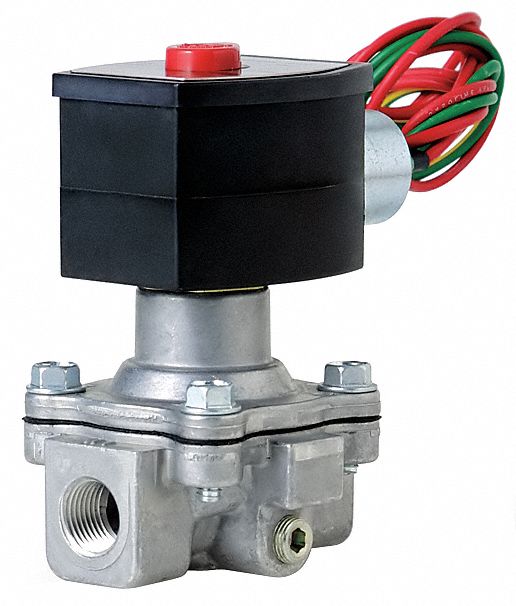

Air and Fuel Gas Solenoid Valve; Solenoid Valve Product Group: Air and Fuel Gas Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Air, Fuel Gas; Pipe Size - Valves: 3/4 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 50 psi; Max. Operating Pressure Differential Water: 50 psi; Environmental Rating - Valves: Explosion Proof, Indoor, Outdoor; Voltage: 12V DC; Coefficient of Volume: 5.1; Body Material - Valves: Aluminum; Coil Insulation Class: F; Seal Material - Valves: NBR; Max. Operating Pressure Differential: 25 psi; Orifice Dia.: 3/4 in; BtuH: 247,500; Ambient Temp. Range: 32 Degrees to 104 Degrees F; Watts: 10.1 W; NEMA Rating: 7, 9; Coil Enclosure: Explosionproof and Watertight; Electrical Connections: 18 in Leads; Max. Fluid Temp.: 104 Degrees F; Hz: 60; Overall Length: 3 5/16 in; Overall Width: 2 11/32 in; Overall Height: 4 15/32 in; Center Line Pipe Center Size: 3 5/8 in; Application: Air and Vacuum Service; Standards: FM Approved, Meets Applicable CE Directives, UL Listed for Safety Shutoff
| Item | Air and Fuel Gas Solenoid Valve |
| Solenoid Valve Product Group | Air and Fuel Gas Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Fuel Gas |
| Pipe Size - Valves | 3/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 50 psi |
| Max. Operating Pressure Differential Water | 50 psi |
| Environmental Rating - Valves | Explosion Proof, Indoor, Outdoor |
| Voltage | 12V DC |
| Coefficient of Volume | 5.1 |
| Body Material - Valves | Aluminum |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Max. Operating Pressure Differential | 25 psi |
| Orifice Dia. | 3/4 in |
| BtuH | 247,500 |
| Ambient Temp. Range | 32 Degrees to 104 Degrees F |
| Watts | 10.1 W |
| NEMA Rating | 7, 9 |
| Coil Enclosure | Explosionproof and Watertight |
| Electrical Connections | 18 in Leads |
| Max. Fluid Temp. | 104 Degrees F |
| Hz | 60 |
| Overall Length | 3 5/16 in |
| Overall Width | 2 11/32 in |
| Overall Height | 4 15/32 in |
| Center Line Pipe Center Size | 3 5/8 in |
| Application | Air and Vacuum Service |
| Standards | FM Approved, Meets Appli |
