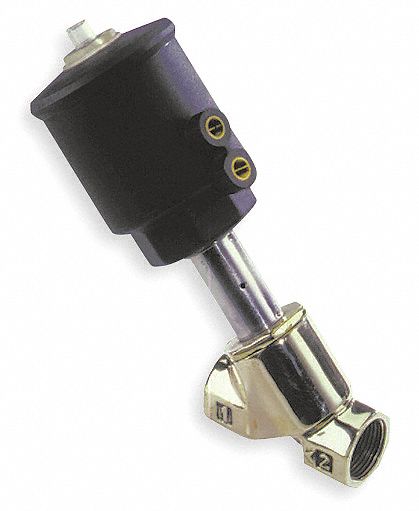

ASCO Bronze Angle Body Piston Valve, 2-Way/2-Position Valve Design, Normally Closed - 8290A020

ASCOSKU: C1935717
MPN : 8290A020
Weight : 7.1 lb

filler

Price:
$562.76 $907.68

Availability : Usually Ships in 10 Business Days

2-Way Normally Closed Angle Body Piston Valves, Pilot pressure range: 60 to 150 psi Max. fluid temp.: 366F,Auxiliary-piloted piston valves feature cold-rolled stainless steel shaft, spring-loaded stem seal, and DuPont Viton shaft wiper. Require 120V, 60 Hz solenoid valve. Designed to handle water, light slurries, and steam.

ItemAngle Body Piston Valve
Solenoid Valve Product GroupAngle Body Piston Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Slurries, Oil, Water
Pipe Size - Valves1 1/2 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Water60 psi
Max. Operating Pressure Differential Steam60 psi
Environmental Rating - ValvesIndoor, Outdoor
Coefficient of Volume52
Body Material - ValvesBronze
Seal Material - ValvesPTFE
Orifice Dia.1 1/2 in
Ambient Temp. Range15 Degrees to 140 Degrees F
Max. Fluid Temp.366 Degrees F
Min. Pilot Pressure60 psi
Max. Pilot Pressure150 psi
Stem Material431 Stainless Steel
Disc MaterialBrass
Operator Size63 mm
Center Line Pipe Center Size8 1/2 in
Viscosity2,700 SUS
Overall Length4 3/4 in
Overall Width8 4/5 in
Overall Height9 5/8 in
ActuatorPilot Solenoid Valve, Not Included
