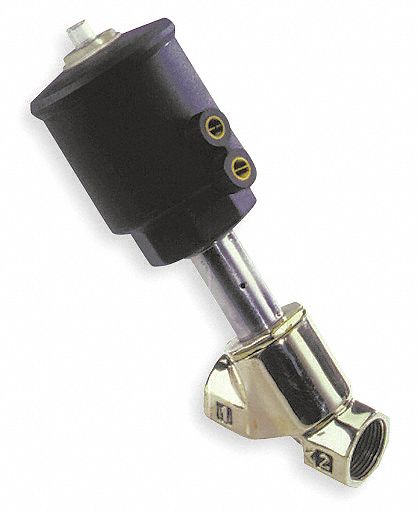

2-Way Normally Closed Angle Body Piston Valves, Pilot pressure range: 60 to 150 psi Max. fluid temp.: 366F,Auxiliary-piloted piston valves feature cold-rolled stainless steel shaft, spring-loaded stem seal, and DuPont Viton shaft wiper. Require 120V, 60 Hz solenoid valve. Designed to handle water, light slurries, and steam.
| Item | Angle Body Piston Valve |
| Solenoid Valve Product Group | Angle Body Piston Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases, Light Slurries, Oil, Water |
| Pipe Size - Valves | 1 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Water | 90 psi |
| Max. Operating Pressure Differential Steam | 90 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Coefficient of Volume | 32 |
| Body Material - Valves | Bronze |
| Seal Material - Valves | PTFE |
| Orifice Dia. | 1 1/4 in |
| Ambient Temp. Range | 15 Degrees to 140 Degrees F |
| Max. Fluid Temp. | 366 Degrees F |
| Min. Pilot Pressure | 60 psi |
| Max. Pilot Pressure | 150 psi |
| Stem Material | 431 Stainless Steel |
| Disc Material | Brass |
| Operator Size | 63 mm |
| Center Line Pipe Center Size | 8 1/32 in |
| Viscosity | 2,700 SUS |
| Overall Length | 4 1/3 in |
| Overall Width | 8 1/2 in |
| Overall Height | 9 in |
| Actuator | Pilot Solenoid Valve, Not Included |
