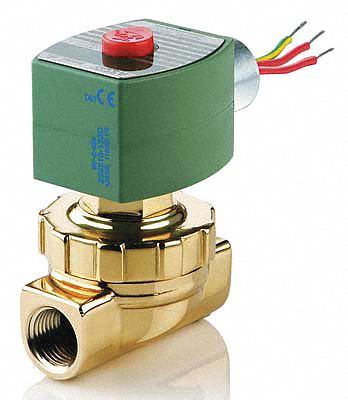

Redhat Steam and Hot Water Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed Valve Configurati - 8220G404

RedhatSKU: C1936006
MPN : 8220G404
Weight : 2.0 lb
filler

Price:
$218.46 $266.41

Availability : Usually Ships in 7-10 Business Days

Steam and Hot Water Solenoid Valve; Solenoid Valve Product Group: Steam and Hot Water Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Hot Water, Steam; Pipe Size - Valves: 1/2 in; Min. Operating Pressure Differential: 5 psi; Max. Operating Pressure Differential Hot Water: 150 psi; Max. Operating Pressure Differential Steam: 50 psi; Environmental Rating - Valves: Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 4.7; Body Material - Valves: Brass; Coil Insulation Class: F; Orifice Dia.: 1/2 in; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Max. Fluid Temp. Hot Water: 210 Degrees F; Coil Enclosure: Watertight No Junction Box; Max. Fluid Temp. Steam: 300 Degrees F; Electrical Connections: 1/2 in Conduit w/18 in Leads; Watts: 6.1 W; Ambient Temp. Range: 125 Degrees F; Hz: 60/50; Overall Length: 2 7/8 in; Overall Width: 2 1/4 in; Overall Height: 3 15/16 in; Center Line Pipe Center Size: 3 13/32 in

ItemSteam and Hot Water Solenoid Valve
Solenoid Valve Product GroupSteam and Hot Water Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesHot Water, Steam
Pipe Size - Valves1/2 in
Min. Operating Pressure Differential5 psi
Max. Operating Pressure Differential Hot Water150 psi
Max. Operating Pressure Differential Steam50 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume4.7
Body Material - ValvesBrass
Coil Insulation ClassF
Orifice Dia.1/2 in
NEMA Rating1, 2, 3, 3S, 4, 4X
Max. Fluid Temp. Hot Water210 Degrees F
Coil EnclosureWatertight No Junction Box
Max. Fluid Temp. Steam300 Degrees F
Electrical Connections1/2 in Conduit w/18 in Leads
Watts6.1 W
Ambient Temp. Range125 Degrees F
Hz60/50
Overall Length2 7/8 in
Overall Width2 1/4 in
Overall Height3 15/16 in
Center Line Pipe Center Size3 13/32 in
