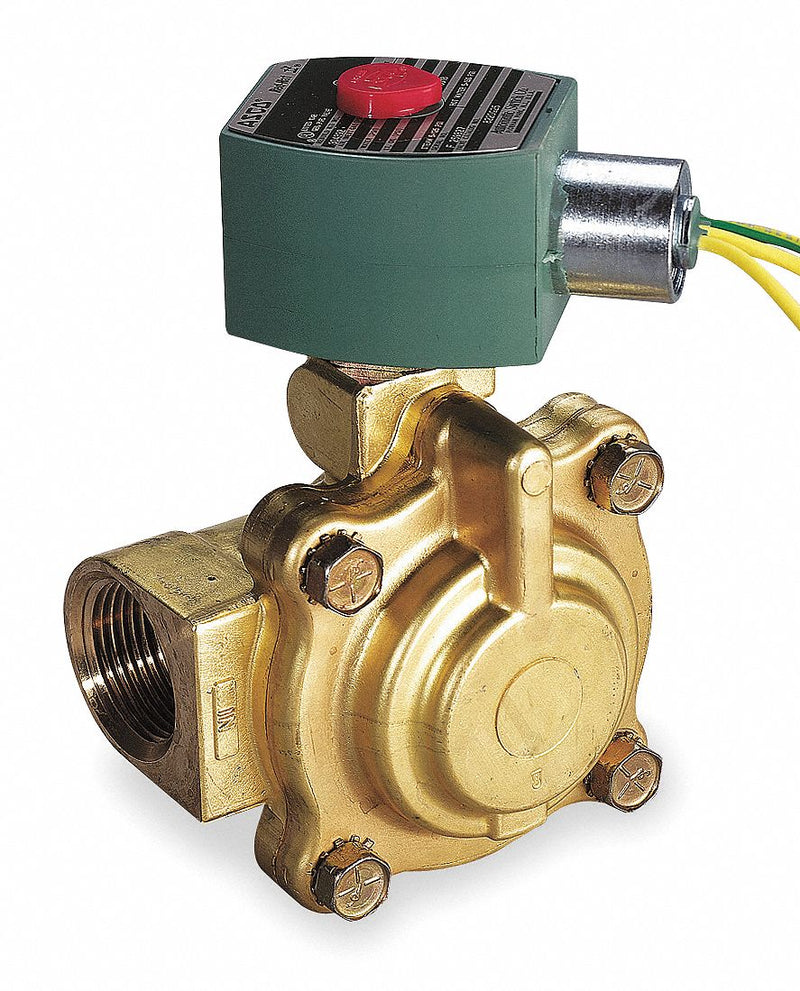

Steam and Hot Water Solenoid Valve; Solenoid Valve Product Group: Steam and Hot Water Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Hot Water, Steam; Pipe Size - Valves: 1 in; Min. Operating Pressure Differential: 5 psi; Max. Operating Pressure Differential Hot Water: 150 psi; Max. Operating Pressure Differential Steam: 50 psi; Environmental Rating - Valves: Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 11.5; Body Material - Valves: Brass; Coil Insulation Class: F; Orifice Dia.: 1 in; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Max. Fluid Temp. Hot Water: 210 Degrees F; Coil Enclosure: Watertight No Junction Box; Max. Fluid Temp. Steam: 300 Degrees F; Electrical Connections: 1/2 in Conduit w/18 in Leads; Watts: 10.1 W; Ambient Temp. Range: 125 Degrees F; Hz: 60/50; Overall Length: 3 3/4 in; Overall Width: 3 17/64 in; Overall Height: 5 3/16 in; Center Line Pipe Center Size: 4 3/16 in
| Item | Steam and Hot Water Solenoid Valve |
| Solenoid Valve Product Group | Steam and Hot Water Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Hot Water, Steam |
| Pipe Size - Valves | 1 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Hot Water | 150 psi |
| Max. Operating Pressure Differential Steam | 50 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 11.5 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Orifice Dia. | 1 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Max. Fluid Temp. Hot Water | 210 Degrees F |
| Coil Enclosure | Watertight No Junction Box |
| Max. Fluid Temp. Steam | 300 Degrees F |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Watts | 10.1 W |
| Ambient Temp. Range | 125 Degrees F |
| Hz | 60/50 |
| Overall Length | 3 3/4 in |
| Overall Width | 3 17/64 in |
| Overall Height | 5 3/16 in |
| Center Line Pipe Center Size | 4 3/16 in |
