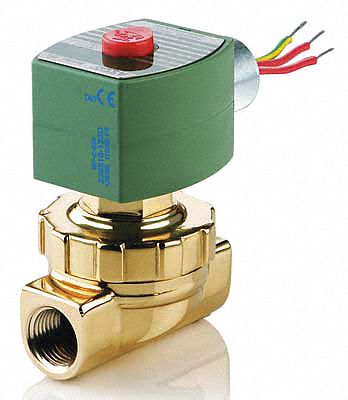

Redhat Steam and Hot Water Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed Valve Configurati - 8220G408

RedhatSKU: C1936011
MPN : 8220G408
Weight : 2.8 lb
filler

Price:
$402.86 $491.29

Availability : Usually Ships in 7-10 Business Days

Steam and Hot Water Solenoid Valve; Solenoid Valve Product Group: Steam and Hot Water Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Hot Water, Steam; Pipe Size - Valves: 3/4 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Hot Water: 150 psi; Max. Operating Pressure Differential Steam: 50 psi; Environmental Rating - Valves: Indoor, Outdoor; Voltage: 24V DC; Coefficient of Volume: 8.8; Body Material - Valves: Brass; Coil Insulation Class: H; Orifice Dia.: 3/4 in; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Max. Fluid Temp. Hot Water: 210 Degrees F; Coil Enclosure: Watertight No Junction Box; Max. Fluid Temp. Steam: 300 Degrees F; Electrical Connections: 1/2 in Conduit w/18 in Leads; Watts: 15.6 W; Ambient Temp. Range: 125 Degrees F; Overall Length: 2 7/8 in; Overall Width: 2 53/64 in; Overall Height: 4 13/64 in; Center Line Pipe Center Size: 3 1/2 in

ItemSteam and Hot Water Solenoid Valve
Solenoid Valve Product GroupSteam and Hot Water Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesHot Water, Steam
Pipe Size - Valves3/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Hot Water150 psi
Max. Operating Pressure Differential Steam50 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage24V DC
Coefficient of Volume8.8
Body Material - ValvesBrass
Coil Insulation ClassH
Orifice Dia.3/4 in
NEMA Rating1, 2, 3, 3S, 4, 4X
Max. Fluid Temp. Hot Water210 Degrees F
Coil EnclosureWatertight No Junction Box
Max. Fluid Temp. Steam300 Degrees F
Electrical Connections1/2 in Conduit w/18 in Leads
Watts15.6 W
Ambient Temp. Range125 Degrees F
Overall Length2 7/8 in
Overall Width2 53/64 in
Overall Height4 13/64 in
Center Line Pipe Center Size3 1/2 in
