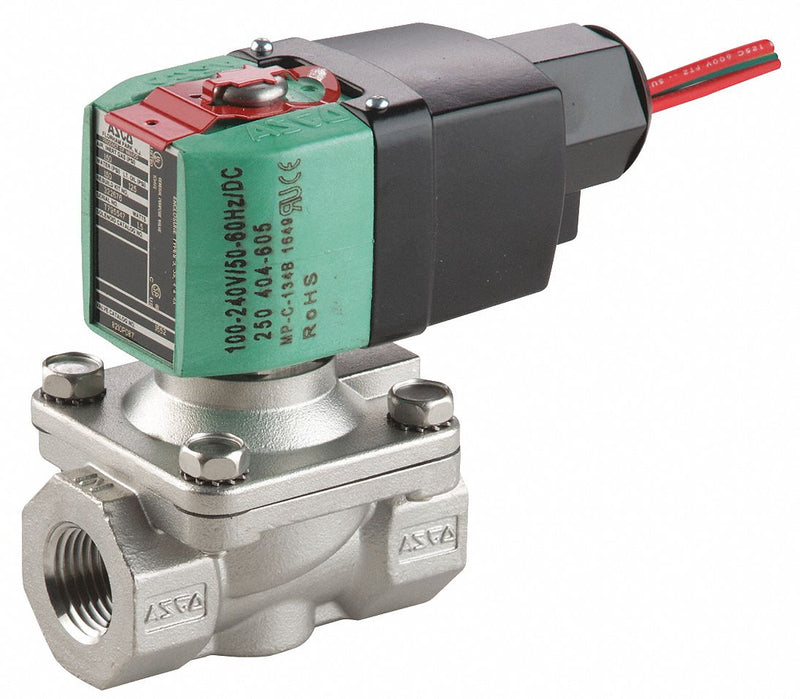

This solenoid valve accepts both AC and DC voltages. It can help increase DC pressure ratings to AC levels. It features lower power operation, voltage ranging, and built-in surge suppression. Design helps eliminate AC hum. Coil included.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/2 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 125 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 100 to 240V AC/DC |
| Coefficient of Volume | 4 |
| Body Material - Valves | Stainless Steel |
| Coil Insulation Class | H |
| Seal Material - Valves | NBR |
| Orifice Dia. | 5/8 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | 66 |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 50 to 60 |
| Watts | 2 W |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 2 13/16 in |
| Overall Width | 2 5/16 in |
| Overall Height | 4 3/16 in |
| Center Line Pipe Center Size | 3 7/16 in |
