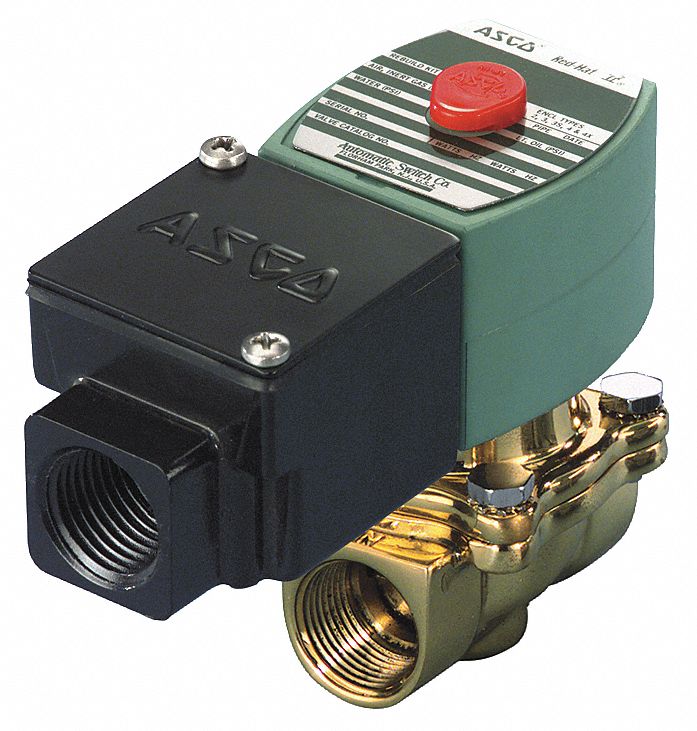

This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/2 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 200 psi |
| Max. Operating Pressure Differential Light Oil | 135 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 4 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | PTFE |
| Orifice Dia. | 5/8 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | 66 |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 50/60 |
| Watts | 6.1 W |
| Coil Enclosure | Watertight Junction Box |
| Electrical Connections | Spade Terminal |
| Overall Length | 4 15/16 in |
| Overall Width | 2 5/16 in |
| Overall Height | 3 15/16 in |
| Center Line Pipe Center Size | 2 13/16 in |
| Application | Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps |
