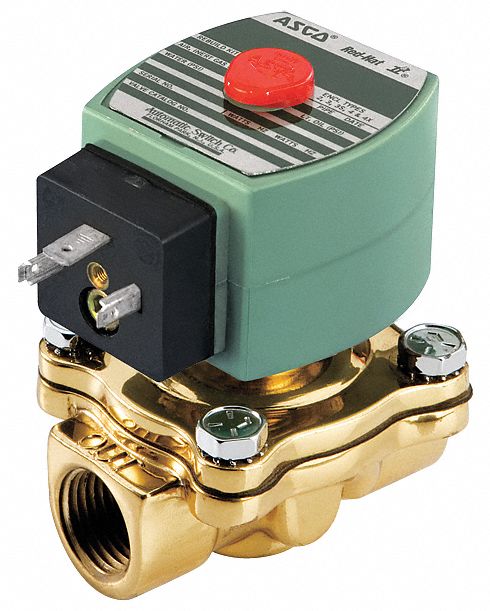

Redhat 120V AC Stainless Steel Solenoid Valve, Normally Closed, 1/2" Pipe Size - SD8210G087

RedhatSKU: C1935548
MPN : SD8210G087
Weight : 2.55 lb
filler

Price:
$770.96 $940.20

Availability : Usually Ships in 1-3 Business Days

This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Oil, Water
Pipe Size - Valves1/2 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light Oil125 psi
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume4
Body Material - ValvesStainless Steel
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.5/8 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.175 Degrees F
Hz50/60
Watts17.1 W
Coil EnclosureWatertight No Junction Box
Electrical ConnectionsDIN
Overall Length2 13/16 in
Overall Width2 7/16 in
Overall Height4 3/16 in
Center Line Pipe Center Size3 1/2 in
ApplicationAir Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
