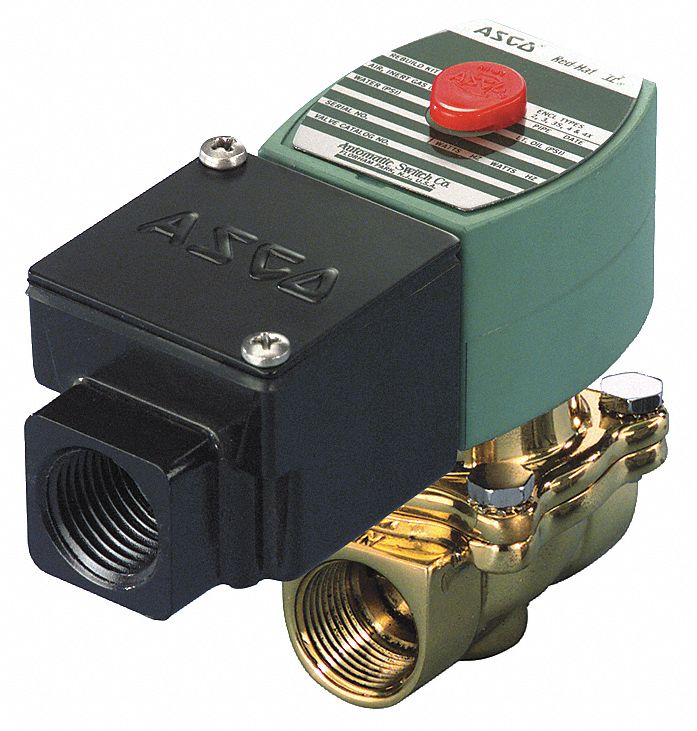

Redhat 120V AC Brass Solenoid Valve, Normally Closed, 3/4" Pipe Size - JKF8210G095

RedhatSKU: C1935486
MPN : JKF8210G095
Weight : 2.59 lb
filler

Price:
$242.78 $296.07

Availability : Usually Ships in 7-10 Business Days

This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Water
Pipe Size - Valves3/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light OilNot Rated
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume5
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.3/4 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz50/60
Watts10.1 W
Coil EnclosureWatertight Junction Box
Electrical ConnectionsScrew Terminal
Overall Length4 15/16 in
Overall Width2 5/16 in
Overall Height4 1/16 in
Center Line Pipe Center Size3 7/16 in
ApplicationAir Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
