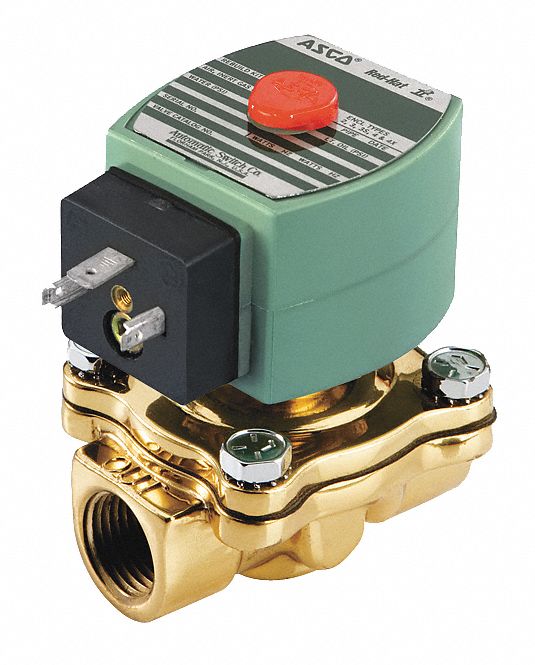

Redhat 120V AC Brass Solenoid Valve, Normally Closed, 3/4" Pipe Size - SC8210G003

RedhatSKU: C1935524
MPN : SC8210G003
Weight : 2.75 lb

filler

Price:
$304.63 $491.34

Availability : Usually Ships in 10 Business Days

This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Light Oil, Water
Pipe Size - Valves3/4 in
Min. Operating Pressure Differential5 psi
Max. Operating Pressure Differential Air/Inert Gas250 psi
Max. Operating Pressure Differential Light Oil100 psi
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume6.5
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.3/4 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.180 Degrees F
Hz50/60
Watts6.1 W
Coil EnclosureWatertight No Junction Box
Electrical ConnectionsDIN
Overall Length3 1/3 in
Overall Width2 in
Overall Height3 1/4 in
Center Line Pipe Center Size3 1/2 in
ApplicationAir Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
