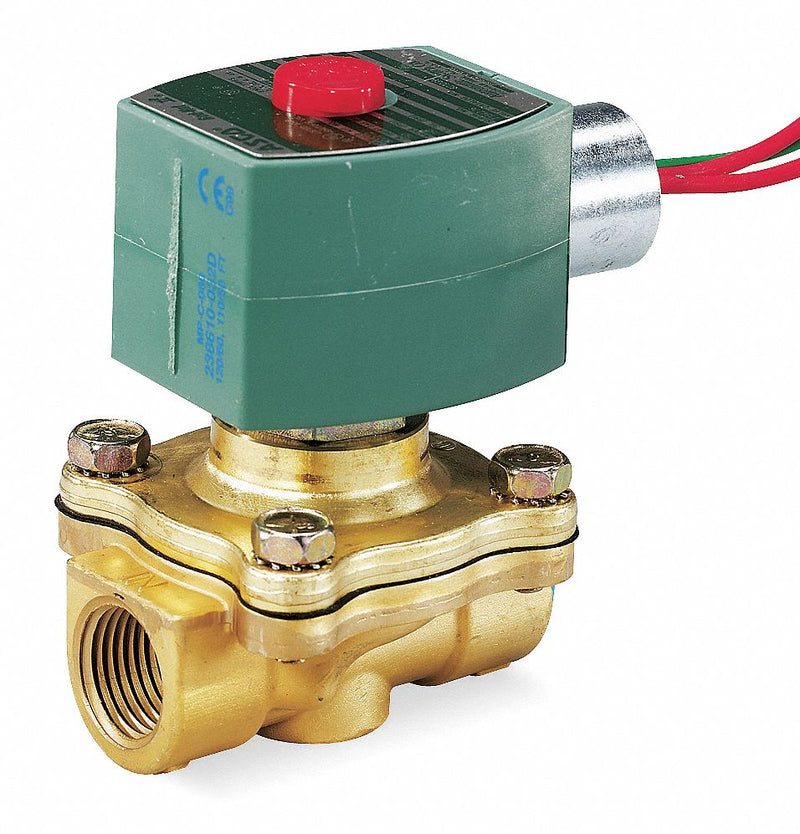

Fuel Gas Solenoid Valve; Solenoid Valve Product Group: Fuel Gas Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Open; Pipe Size - Valves: 3/4 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 150 psi; Max. Operating Pressure Differential Light Oil: 125 psi; Max. Operating Pressure Differential Water: 150 psi; Voltage: 110/120V AC; Coefficient of Volume: 5.5; Coil Insulation Class: F; Max. Operating Pressure Differential: 125 psi; Orifice Dia.: 3/4 in; BtuH: 295,000; Ambient Temp. Range: 32 Degrees to 125 Degrees F; Watts: 10.1 W; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Coil Enclosure: Watertight No Junction Box; Electrical Connections: 1/2 in Conduit w/18 in Leads; Max. Fluid Temp.: 180 Degrees F; Hz: 50/60; Overall Length: 3 1/2 in; Overall Width: 2 5/16 in; Overall Height: 4 5/8 in; Center Line Pipe Center Size: 4 in; Application: For Control of Commercial and Industrial Gas Burners
| Item | Fuel Gas Solenoid Valve |
| Solenoid Valve Product Group | Fuel Gas Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Open |
| Pipe Size - Valves | 3/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 125 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Voltage | 110/120V AC |
| Coefficient of Volume | 5.5 |
| Coil Insulation Class | F |
| Max. Operating Pressure Differential | 125 psi |
| Orifice Dia. | 3/4 in |
| BtuH | 295,000 |
| Ambient Temp. Range | 32 Degrees to 125 Degrees F |
| Watts | 10.1 W |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Max. Fluid Temp. | 180 Degrees F |
| Hz | 50/60 |
| Overall Length | 3 1/2 in |
| Overall Width | 2 5/16 in |
| Overall Height | 4 5/8 in |
| Center Line Pipe Center Size | 4 in |
| Application | For Control of Commercial and Industrial Gas Burners |
