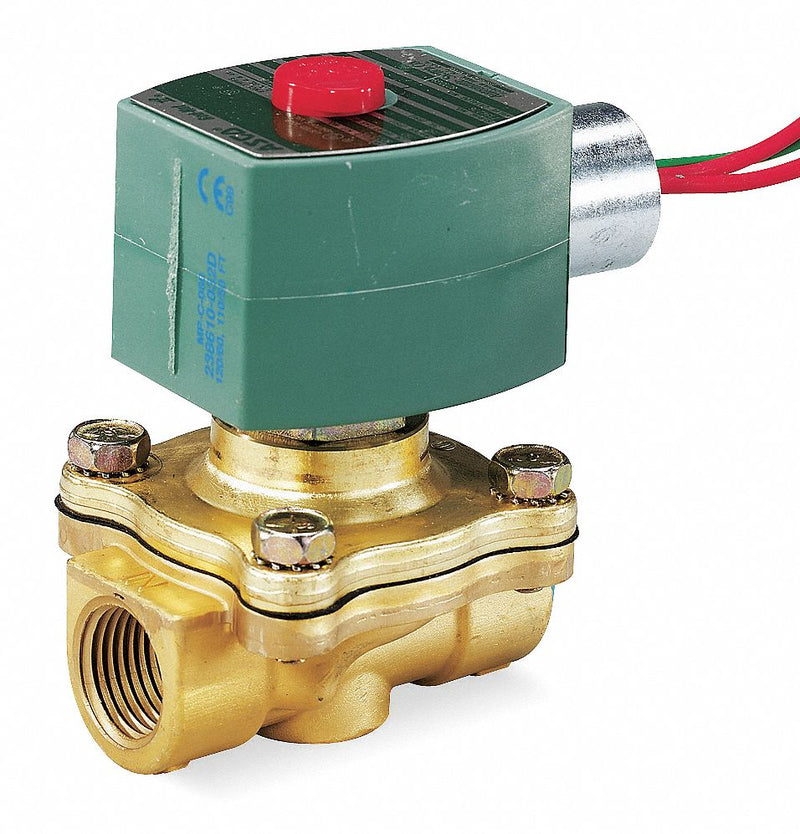

Redhat 12V DC Brass Solenoid Valve, Normally Closed, 3/8" Pipe Size - 8210G093

RedhatSKU: C1935473
MPN : 8210G093
Weight : 2.35 lb

filler

Price:
$214.65 $346.20

Availability : Usually Ships in 10 Business Days

This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.

ItemSolenoid Valve
Solenoid Valve Product GroupSolenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Inert Gases, Water
Pipe Size - Valves3/8 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas40 psi
Max. Operating Pressure Differential Light OilNot Rated
Max. Operating Pressure Differential Water40 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage12V DC
Coefficient of Volume3
Body Material - ValvesBrass
Coil Insulation ClassF
Seal Material - ValvesNBR
Orifice Dia.5/8 in
NEMA Rating1, 2, 3, 3S, 4, 4X
IP Rating66
Max. Fluid Temp.150 Degrees F
Watts11.6 W
Coil EnclosureWatertight No Junction Box
Electrical Connections1/2 in Conduit w/18 in Leads
Overall Length3 in
Overall Width2 5/16 in
Overall Height3 15/16 in
Center Line Pipe Center Size3 5/16 in
ApplicationAir Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
