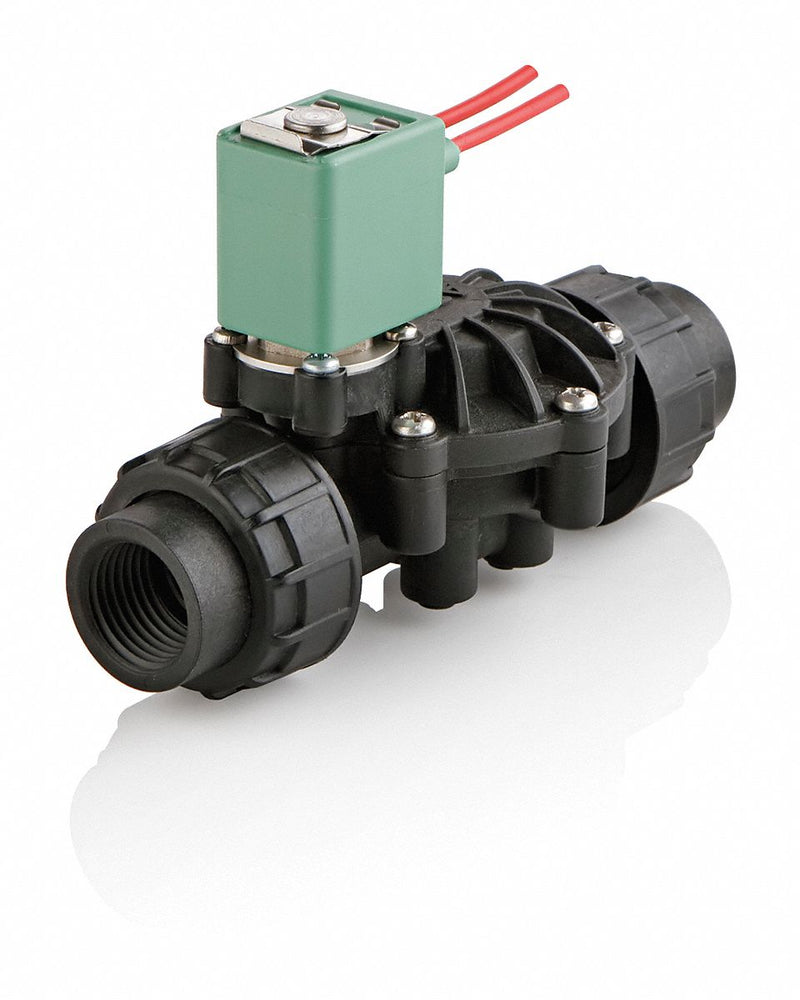

Low-lead valve is used to start and stop the flow of media and is ideal for use in commercial and industrial applications. Features a rugged plastic body, watertight coil enclosure, and durable thermoplastic vulcanisate (TPV) seal.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Plastic Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Water |
| Pipe Size - Valves | 1/2 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Indoor, Outdoor, Washdown |
| Voltage | 24V DC |
| Coefficient of Volume | 4.5 |
| Body Material - Valves | Polymide, Polyphenylene Ether |
| Coil Insulation Class | F |
| Seal Material - Valves | Santoprene |
| Orifice Dia. | 3/4 in |
| Safe Working Water Pressure | 150 psi |
| Hz | 50 to 60 |
| Operation | Turn and Lock/Turn and Lock |
| Watts | 6.9 W |
| Coil Enclosure | Watertight |
| Electrical Connections | Leaded Coil with 1/2 in NPT Threaded Conduit Adaptor |
| NEMA Rating | 4X |
| Overall Length | 4 39/64 in |
| Max. Fluid Temp. | 180 Degrees F |
| Overall Width | 2 39/64 in |
| Overall Height | 3 19/64 in |
| Application | Water Conditioning and Purification |
| Standards | NSF |
| Compliance | 169, 372, 42, CSA, NSF 61, UL |
