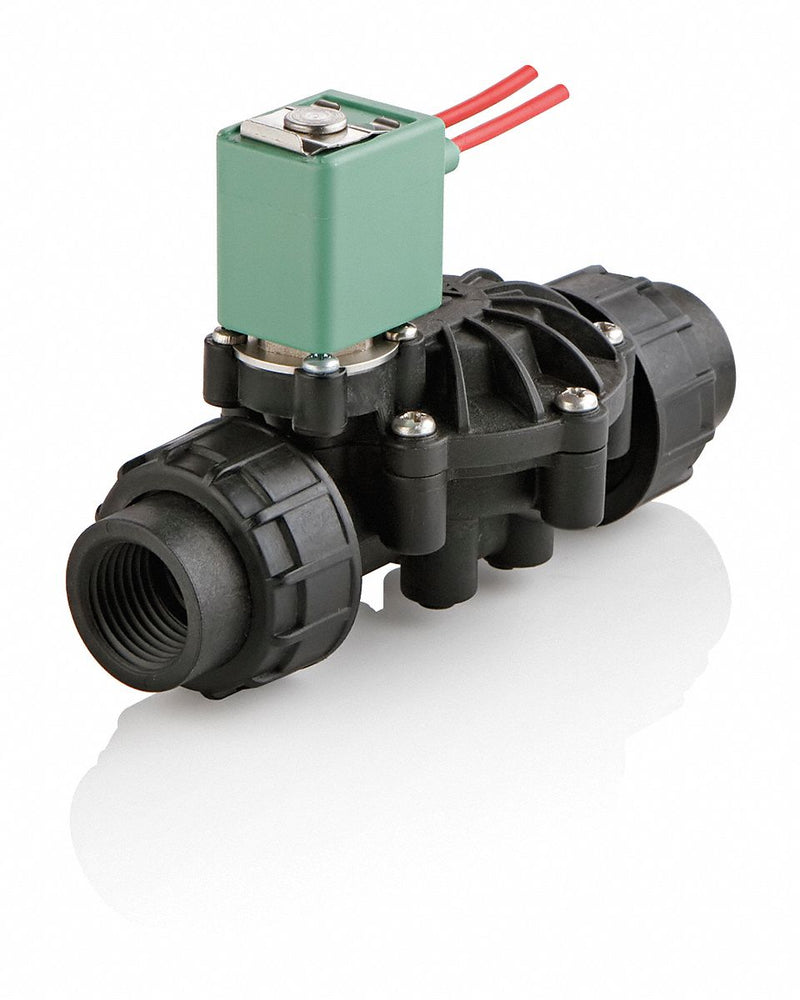

ASCO NSF 61 Listed Plastic, PPE+PA Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed - 8212A037L1100F1

ASCOSKU: C1935846
MPN : 8212A037L1100F1
Weight : 0.95 lb
filler

Price:
$284.24 $346.63

Availability : Usually Ships in 1-3 Business Days

Low-lead valve is used to start and stop the flow of media and is ideal for use in commercial and industrial applications. Features a rugged plastic body, watertight coil enclosure, and durable thermoplastic vulcanisate (TPV) seal.

ItemSolenoid Valve
Solenoid Valve Product GroupPlastic Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesWater
Pipe Size - Valves3/4 in
Min. Operating Pressure Differential5 psi
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor, Washdown
Voltage24V DC
Coefficient of Volume7
Body Material - ValvesPolymide, Polyphenylene Ether
Coil Insulation ClassF
Seal Material - ValvesSantoprene
Orifice Dia.3/4 in
Safe Working Water Pressure150 psi
Hz50 to 60
OperationNPT Thread
Watts6.9 W
Coil EnclosureWatertight
Electrical ConnectionsLeaded Coil with 1/2 in NPT Threaded Conduit Adaptor
NEMA Rating4X
Overall Length5 13/64 in
Max. Fluid Temp.180 Degrees F
Overall Width2 39/64 in
Overall Height3 39/64 in
ApplicationWater Conditioning and Purification
StandardsNSF
Compliance169, 372, 42, CSA, NSF 61, UL
