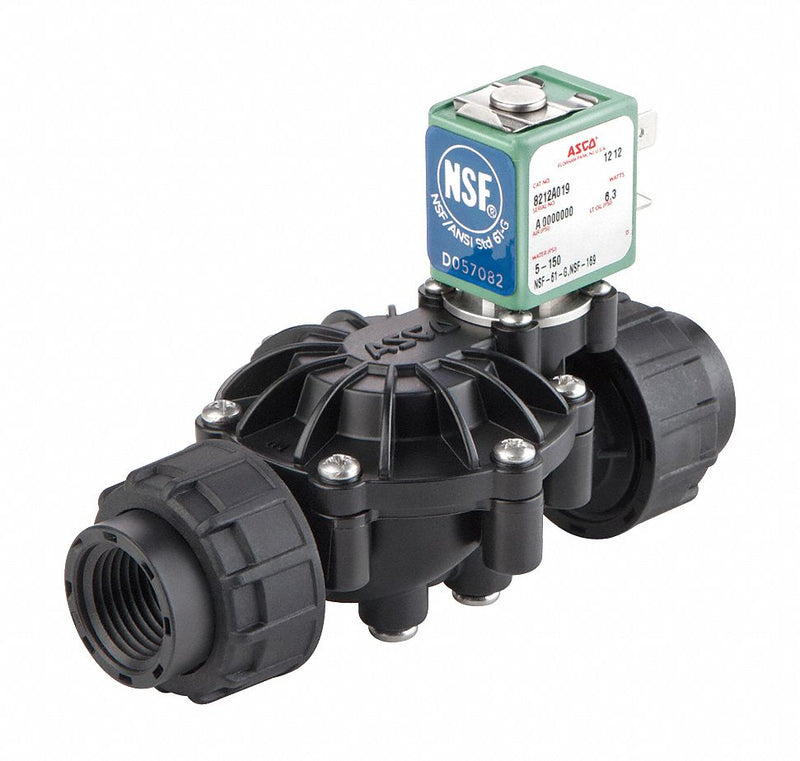

ASCO NSF 61 Listed Plastic, PPE+PA Solenoid Valve, 2-Way/2-Position Valve Design, Normally Open - K212A044S0100F2

ASCOSKU: C1935867
MPN : K212A044S0100F2
Weight : 1.0 lb


$499.35 $805.41

Availability : Usually Ships in 10 Business Days

Low-lead valve is used to start and stop the flow of media and is ideal for use in commercial and industrial applications. Features a rugged plastic body, watertight coil enclosure, and durable thermoplastic vulcanisate (TPV) seal.

ItemSolenoid Valve
Solenoid Valve Product GroupPlastic Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Open
Media - ValvesWater
Pipe Size - Valves3/4 in
Min. Operating Pressure Differential5 psi
Max. Operating Pressure Differential Water120 psi
Environmental Rating - ValvesIndoor, Outdoor, Washdown
Voltage120V AC @ 60HZ
Coefficient of Volume7
Body Material - ValvesPolymide, Polyphenylene Ether
Coil Insulation ClassF
Seal Material - ValvesSantoprene
Orifice Dia.3/4 in
Safe Working Water Pressure120 psi
OperationTurn and Lock/Turn and Lock
Watts11 W
Coil EnclosureWatertight
Electrical ConnectionsDIN
NEMA Rating4X
Overall Length4 51/64 in
Max. Fluid Temp.180 Degrees F
Overall Width2 39/64 in
Overall Height3 39/64 in
ApplicationWater Conditioning and Purification
Compliance169, 372, 42, CSA, NSF 61, UL
