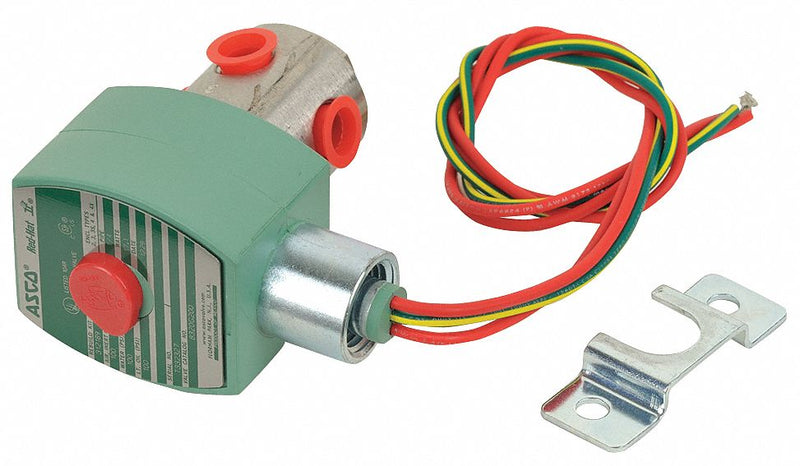

This solenoid valve features universal valve configuration and is suitable for use with air and inert gases. It is rated for indoor and outdoor work environments. It can be connected in normally closed position to close when de-energized, or normally open position to open when de-energized.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 3-Way/2-Position |
| Valve Configuration | Universal |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 100 psi |
| Max. Operating Pressure Differential Light Oil | 100 psi |
| Max. Operating Pressure Differential Water | 100 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 0.12 |
| Body Material - Valves | Stainless Steel |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 3/32 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | 66 |
| Max. Fluid Temp. | 200 Degrees F |
| Hz | 50/60 |
| Watts | 17.1 W |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | DIN |
| Overall Length | 3 in |
| Overall Width | 2 in |
| Overall Height | 3 3/4 in |
| Center Line Pipe Center Size | 2 13/16 in |
