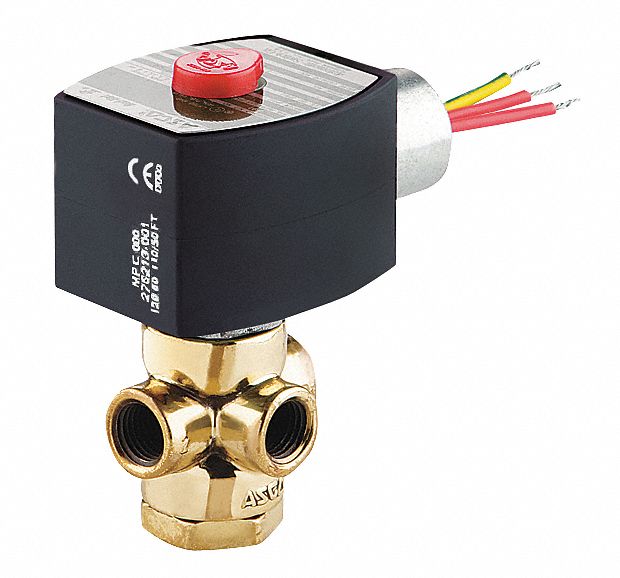

This solenoid valve features normally closed valve configuration and is ideal for use with air and inert gases. Use in indoor and outdoor work environments. Features 3 pipe connections and 2 orifices that alternately apply pressure to, and exhaust pressure from valve actuators and single-acting cylinders.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 3-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 550 psi |
| Max. Operating Pressure Differential Light Oil | 600 psi |
| Max. Operating Pressure Differential Water | 600 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Voltage | 12V DC |
| Coefficient of Volume | 0.02 |
| Body Material - Valves | Brass |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 1/32 in |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | 66 |
| Max. Fluid Temp. | 140 Degrees F |
| Watts | 11.2 W |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 2 1/2 in |
| Overall Width | 1 13/16 in |
| Overall Height | 3 13/16 in |
| Center Line Pipe Center Size | 2 13/16 in |
