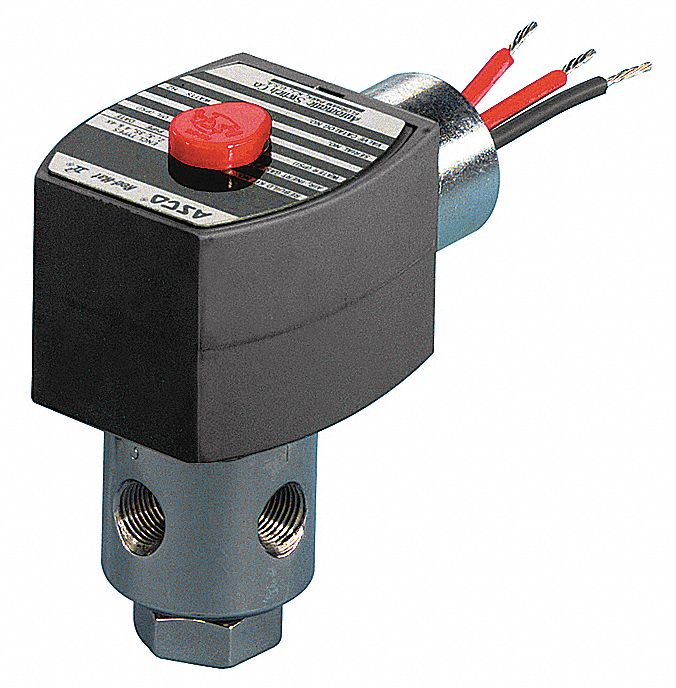

Ideal for the control of air, water, light oil, and non-corrosive media, this REDHAT solenoid valve features 3 ports and 2 orifices. When 1 orifice is open the other is closed., General service,Pressure to the cylinder port when valve is energized
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Solenoid Valve |
| Valve Ways and Positions | 3-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 115 psi |
| Max. Operating Pressure Differential Light Oil | 115 psi |
| Max. Operating Pressure Differential Water | 115 psi |
| Environmental Rating - Valves | Explosion Proof, Indoor, Outdoor |
| Voltage | 24V DC |
| Coefficient of Volume | 0.12 |
| Body Material - Valves | Stainless Steel |
| Coil Insulation Class | F |
| Seal Material - Valves | NBR |
| Orifice Dia. | 3/32 in |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P, 7, 9 |
| Max. Fluid Temp. | 150 Degrees F |
| Watts | 11.6 W |
| Coil Enclosure | Explosionproof and Watertight |
| Electrical Connections | 1/2 in Conduit w/18 in Leads |
| Overall Length | 3 in |
| Overall Width | 2 in |
| Overall Height | 3 3/4 in |
| Center Line Pipe Center Size | 2 3/4 in |
